Side Lesson 04: Tax Efficiency — Asset Location, Harvesting, and the IRA/401(k) Stack

---

1. Why This Is Important

For a US household earning between roughly $200k and $750k a year, **taxes are almost always the largest line item on the lifetime investment-cost statement**. They beat fund fees, advisory fees, and trading costs combined — and they do so by an order of magnitude. At the 32% federal bracket plus a typical 5% state bracket, a balanced taxable portfolio gives back somewhere between 1.0% and 1.7% per year in tax drag without anybody noticing, because the brokerage statement quotes pre-tax. Compound that for thirty years against a 7% real return and the after-tax terminal wealth is 25-40% lower than the back-of-envelope spreadsheet line.

The good news is that the rules are public, the rates are written down, and most of the available efficiency is mechanical. You do not need a tax attorney for the first 80%. You need four moves, in this order:

Know the schedule. Long-term capital gains and qualified

dividends sit on a separate, lower bracket schedule than wages. Knowing where you fall on it changes which sleeve of your portfolio should live in which account.

Place the right asset in the right account. A $100,000 BND

position generates the same pre-tax interest in any account. In a brokerage it loses 32%+ of that interest to the IRS every April. In a Traditional IRA it loses zero until withdrawal. The asset is identical; the location changes the after-tax curve.

Harvest losses systematically. When a position is underwater,

selling and re-establishing similar exposure crystallises a tax loss that offsets gains anywhere else in the portfolio. Most retail investors leave this money on the table because the wash-sale rule looks scarier than it is.

Stack the accounts in the right order. Roth, Traditional, HSA,

401(k), brokerage — each has a different tax treatment on the way in, while invested, and on the way out. Filling them in the wrong order can cost six figures by retirement.

This lesson is the operating manual for those four moves. The deeper rule — "the largest unspoken fee is tax; use options and margin to manage it" — sits at the very end of the stack. Once the easy structural wins are captured, the marginal dollar of tax efficiency comes from how you hold the position (LTCG holding period, Section 1256 60/40 split, options as deferred income), not from which fund you bought.

---

2. What You Need to Know

2.1 The 2026 Rate Schedule — The Numbers You Have to Memorise

Three separate schedules govern investment income in the US. Burn the 2026 numbers (post-TCJA-extension) into memory:

Long-term capital gains and qualified dividends — held >12 months.

Bracket	MFJ taxable income (2026)	Single taxable income
0%	up to $96,700	up to $48,350
15%	$96,701 - $600,050	$48,351 - $533,400
20%	above $600,050	above $533,400

On top of that, the 3.8% Net Investment Income Tax (NIIT) kicks in above $250k MAGI for MFJ ($200k single). It applies to interest, dividends, capital gains, royalties, rents, and most passive income. For a typical professional couple at $300k AGI, the effective LTCG rate is therefore 15% + 3.8% = 18.8%, not 15%. Above $600k the top federal rate is 20% + 3.8% = 23.8%.

Short-term capital gains (held ≤12 months) and **non-qualified dividends** (REITs, most BDCs, many foreign stocks) — taxed as ordinary income at your marginal wage bracket: 22% / 24% / 32% / 35% / 37%. NIIT still applies on top.

Treasury interest — federal ordinary income, state-exempt. A 4.2% 10-year Treasury in California is a roughly 4.4% taxable- equivalent yield; in a 0%-state, the headline 4.2% is the headline.

Municipal bond interest — federal-exempt; in-state munis are state-exempt too. Often AMT-exempt depending on the issue.

The single most important consequence is the rate gap: in the 32% bracket, ordinary-rate income loses 37% (32% federal + 5% state) of every dollar, while qualified-dividend income loses 20% (15% LTCG + 5% state). The gap is 17 percentage points of after-tax yield on the same gross dollar. That is the lever asset location pulls.

2.2 Asset Location — The Free Lunch

The principle is one sentence: **hold tax-inefficient assets in tax-deferred accounts, and tax-efficient assets in taxable accounts.** Mechanical, not clever. A summary of the eight canonical sleeves:

Broad US stock index (VTI / SPY). Yields 1.4%, mostly qualified

dividends, capital gains realise only when you sell. Tax drag in a brokerage is roughly 0.3-0.4% per year. **Best location: Taxable.** (Roth is acceptable but wastes the rare LTCG advantage.)

Broad international stocks (VXUS / IEFA). Same yield profile

plus a foreign tax credit of 7-9% of the dividends paid abroad — a credit you can only claim if the position is in a taxable account. Putting VXUS in an IRA forfeits the credit. **Best location: Taxable.**

Investment-grade and total-bond ETFs (BND / AGG / VTEB). Yield

4-5% in interest, all taxed as ordinary income at federal + state. Tax drag in a brokerage at 32% federal + 5% state is roughly 1.6% per year on a 4.5%-yielding bond fund. **Best location: Traditional IRA / 401(k).**

High-yield corporate bonds (HYG / JNK). Same problem as IG,

except the yield is 7-8% and the drag is correspondingly larger (~3.0%/yr). Best location: Traditional IRA.

REITs (VNQ / SCHH). Distributions are *non-qualified ordinary

dividends*. The 20% Section 199A pass-through deduction softens the blow to roughly 80% of the marginal rate, but it is still much worse than LTCG. Best location: Traditional IRA, with Roth a close second.

TIPS (SCHP / VTIP). Inflation accruals are imputed ordinary

income each year, even when not received in cash ("phantom income"). Holding TIPS in a brokerage account guarantees a tax bill on money you have not yet seen. **Best location: Traditional IRA / I-Bonds (the I-Bond version defers automatically).**

MLPs and energy partnerships (EPD, MPLX, ET). Distributions

are partly return-of-capital (great for taxable) but generate K-1s. Inside an IRA, K-1 income above $1,000 triggers UBIT — Unrelated Business Income Tax — at trust-level rates up to 37%, and the IRA itself files a separate return. **Best location: Taxable. Worst location: any IRA.**

**High-growth assets and crypto (small-cap, BTC ETFs, single-name

speculation).** Returns are dominated by capital gains, which can be deferred indefinitely in a brokerage. But because the *expected compound return is highest*, every dollar of growth is most valuable when it is also tax-free. Best location: Roth. A Roth-held BTC IBIT or speculative single-stock position compounded for 30 years and pulled out at 65 is the most powerful single tax move available to a retail investor.

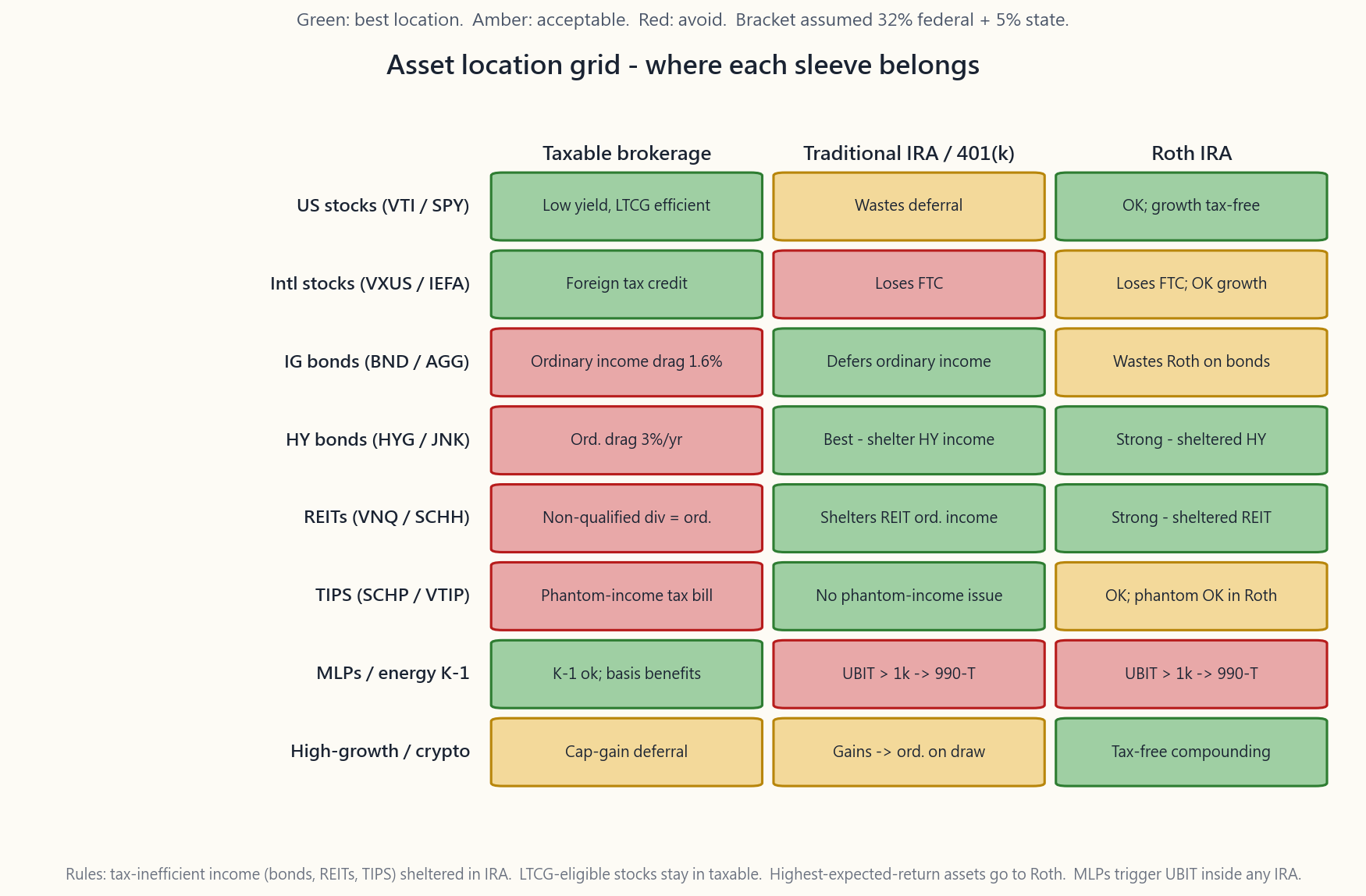

The image at the top of this lesson is the visual summary. Cells in green are the right location for that asset; red is wrong; amber is acceptable.

2.3 Tax-Loss Harvesting and the Wash-Sale Rule

Tax-loss harvesting (TLH) is mechanical: any position currently trading below your cost basis can be sold to crystallise a paper loss, which then offsets realised gains anywhere else in your portfolio and up to $3,000 of ordinary income per year. Unused losses carry forward indefinitely. The savings on a typical $1M taxable portfolio in a normal-volatility year is roughly $3,000-$5,000 / year, which compounds to roughly $100k of saved taxes over a 30-year horizon on the chart below.

The wash-sale rule (IRC §1091) is the only real constraint. If you sell a security at a loss, you cannot buy "substantially identical" securities in any account you control (including IRAs and your spouse's accounts) within 30 days before or after the sale, or the loss is disallowed and added to the basis of the replacement.

Three rules of thumb that pass the test in practice:

Pair similar but not identical ETFs. VTI ↔ ITOT (different

issuer, different index), VOO ↔ IVV, BND ↔ AGG. The IRS has never challenged a swap between two index ETFs tracking *different indices* even if the indices are 95%+ overlapping.

Hold the replacement for at least 31 days. After day 31 you

may swap back if you prefer the original. Most TLH platforms (Wealthfront, Betterment, Schwab Tax-Loss Harvesting) automate this round-trip.

Do not buy the same security in your IRA inside the window.

This is the most expensive accidental wash-sale: most retail investors do not realise the rule reaches across accounts and even into spousal IRAs.

The harvest is "free" only at the gross level. At the net level you have lowered the cost basis of the replacement, so the saved tax is really deferred tax. The compounded benefit is real (you keep more invested, longer) but you are not literally erasing the liability — you are postponing it, ideally until a year you control the bracket (early retirement, gap year, charitable transfer, or death-with-step-up).

2.4 Roth Conversions and the Mega-Backdoor Roth

Two advanced moves that compound enormously over a career.

Roth conversion. You move money from a Traditional IRA or 401(k) into a Roth IRA. The conversion is taxable as ordinary income in the year of the move. The Roth then grows tax-free forever and is not subject to RMDs (Required Minimum Distributions, currently age 75 under SECURE 2.0). The arithmetic is favourable whenever **your current marginal bracket is lower than your expected future marginal bracket on the same dollar.**

The classic case: a 60-year-old retires with a $1.5M Traditional IRA and waits until age 75 RMDs force ~$60k/year of distributions on top of Social Security. Those forced distributions get taxed at the 22%+ bracket. Instead, the retiree converts $50k/year between ages 60 and 70 in the low-income gap years, paying 12-22% on the way in and zero on the way out. The lifetime tax bill drops by 5-10 percentage points on the converted amount.

Mega-backdoor Roth. A subset of 401(k) plans allow after-tax (non-Roth) contributions on top of the regular $23,500 employee limit, up to the combined $70,000 (2026) annual addition cap. Those after-tax dollars can be immediately rolled — in-plan or to a Roth IRA — into Roth status, putting up to **$46,500 of extra Roth money** into the system every year. The catch: only ~50% of plans support the in-plan conversion, and the rules are an HR-department question, not a tax-attorney one. If your plan supports it, this is the single highest-leverage tax move in the US system.

2.5 The HSA — The Triple-Tax Account

The Health Savings Account is the only US account that is **tax-free on the way in, tax-free on growth, and tax-free on the way out** (provided withdrawals are for qualified medical expenses). 2026 contribution limits: $4,400 single / $8,750 family. The HSA is available only if you are enrolled in a qualifying high-deductible health plan (HDHP).

The high-leverage move is to **fund the HSA, invest it in a total-stock-market fund, and pay current medical expenses out of pocket** — saving the receipts. After 30 years of compounding the HSA can be $300k+, and you can reimburse yourself for the old medical receipts at any time, tax-free. This converts what looks like a healthcare account into a stealth Roth IRA with no income limits, no contribution caps tied to wages, and no required distribution age (HSA distributions for non-medical expenses after 65 are taxed as ordinary income — same as a Traditional IRA — so the worst-case downside is "Traditional IRA").

The HSA is the first dollar in the contribution stack for any investor with access to it. Even before the 401(k) match.

2.6 The Account-Filling Order

The full priority stack for a new dollar of savings, in 2026:

401(k) up to the employer match. A 100% return on day one is

not negotiable.

HSA to the limit, if eligible. Triple tax treatment.

401(k) up to the $23,500 employee limit. Traditional or Roth

depending on your bracket — Roth if current bracket ≤ expected future, Traditional otherwise.

Backdoor Roth IRA, $7,000. For high earners above the direct

Roth income limits (single MAGI > $165k, MFJ > $246k in 2026).

Mega-backdoor Roth, up to $46,500 if your plan supports it.

Taxable brokerage account. Once the tax-advantaged caps are

exhausted, the taxable account holds the residual — which is exactly where the asset-location and TLH discipline does its work.

529 plan, contemporaneously with steps 1-6, for any

college-bound dependents — the limit varies by state but $10-15k per beneficiary is the typical sweet spot.

2.7 Withdrawal Order — Distribution-Side Tax Planning

The accumulation order has a mirror on the distribution side. The canonical retirement-withdrawal sequence:

Required Minimum Distributions first, if any (Trad IRA after

age 75, inherited IRAs).

Taxable account next. Assets sold from the taxable account

benefit from the basis you have built up (and any losses you harvested). Capital gains realisation is deliberate — you can pick high-basis lots and stay in the 0% LTCG bracket if your taxable income is under the threshold.

Traditional IRA / 401(k) third. Withdrawals are ordinary

income; control the bracket by keeping annual draws under the next-bracket boundary.

Roth last. The Roth grows tax-free with no RMDs and no tax on

withdrawal. Holding it last maximises tax-free compounding and leaves it for late-life expenses, charitable transfers, or inheritance (where heirs get 10 tax-free years under SECURE 2.0).

A subtle and powerful variant: in the gap years between retirement and age 75 (or earlier Social Security claiming), keep ordinary income low and use those years to convert Traditional → Roth (per §2.4) while withdrawing from the Taxable account for living expenses. This is the single most-effective lifetime tax-management move available to early retirees.

2.8 Tax via Options and Margin

Once steps 2.2-2.7 are mechanical, the marginal dollar of tax-efficiency comes from how you hold the position. There are four exposure-level moves:

• **Use Section 1256 contracts (SPX / NDX index options, /ES

futures, /MES, /MNQ).** These are taxed at 60% LTCG / 40% STCG regardless of holding period — a blended top rate of about 26.8% vs. 37% for short-term equity options. For active option writers this is a 10pp blanket discount.

• Cover instead of selling. If a stock has a $200k embedded gain,

don't sell to reduce exposure — overlay a short call (covered call) or a collar (long put + short call). You collect premium or pay little, the delta drops, and the embedded gain stays unrealised.

• Replace shares with synthetic longs. A long-call + short-put

at the same strike replicates 100 shares but uses ~10x less capital. Selling the underlying shares while holding the synthetic *crystallises the tax loss* if underwater (subject to wash-sale considerations on the synthetic — get a tax pro to bless the structure) and frees the capital for other uses.

• Box spreads and portfolio-margin loans. Borrow against the

portfolio at sub-Treasury rates, use the cash, and never sell. The position keeps compounding tax-free until you eventually sell or step-up at death.

These are the moves that separate "good" from "exceptional" after-tax returns over a 30-year horizon. They are not necessary to capture 80% of the available efficiency — the §2.2-2.7 stack handles that — but they are how you close the last 20% of the gap.

---

3. Common Misconceptions

1. "All dividends are taxed the same way." Wrong. Qualified dividends from US C-corps held >60 days are taxed at LTCG rates. REIT distributions, BDC distributions, MLP guaranteed payments, and most foreign dividends are non-qualified and taxed as ordinary income.

2. "I can deduct my full investment loss against income." Only $3,000 per year against ordinary income ($1,500 if MFS). Larger losses offset realised gains first, then carry forward indefinitely against future gains.

3. "Bonds in Roth are smart because they're 'safe.'" Backwards. Bonds yield ordinary income, which gets the worst tax treatment. Putting them in Roth wastes the Roth's tax-free growth on the lowest-expected-return asset in your stack. Bonds should sit in a Traditional IRA, where the income is deferred to a low-bracket retirement year.

4. "TIPS and I-Bonds are the same thing." They are not. TIPS in a brokerage account generate phantom-income tax bills annually on the inflation accrual. I-Bonds defer the tax to redemption. Hold TIPS in IRAs only; I-Bonds anywhere is fine.

*5. "I need to wait 30 days after* selling to buy back the same security."* It is 30 days before and 30 days after* — a full 61-day window centred on the sale. And it includes the IRA, the spousal IRA, and any joint account.

6. "Roth is always better than Traditional." False. Roth wins when your current marginal bracket is lower than your retirement marginal bracket. Most high earners in their peak years are in 32-37% brackets; Traditional contributions deduct at that rate, and the withdrawal in retirement is often at 22-24%. Traditional wins in that case.

7. "MLPs in an IRA are fine because IRAs don't pay tax." They trigger UBIT — Unrelated Business Income Tax — at trust rates, the highest rates in the code. If your MLP K-1 reports more than $1,000 of UBTI, your IRA itself files Form 990-T and pays tax. Keep MLPs out of any tax-advantaged account.

8. "Tax-loss harvesting permanently eliminates the tax." It defers it. The replacement security has a lower basis equal to your original cost minus the harvested loss. When you eventually sell the replacement, the gain is bigger by exactly the amount you harvested. The benefit is the time value of money on the deferred tax, plus the optionality to realise in a low-bracket year (or never, via step-up at death).

9. "Roth conversions are pointless if my future bracket is lower." Yes — that is exactly the case where you should not convert. Run the bracket comparison every year. Convert in years when current < future; do nothing in years when future ≤ current.

**10. "The HSA is a healthcare account; it has nothing to do with my investments."** The HSA is the most powerful tax-advantaged investment account in the US system. The healthcare label is a historical artefact. If your HSA is in a "saving account" earning 0.05%, you are leaving the triple-tax benefit on the table.

---

4. Q&A

**Q1: I'm 35, in the 24% bracket, with a $400k taxable account, $150k Trad IRA, and $50k Roth IRA. Where do my new contributions go?**

A: Stack order: 401(k) match → HSA → 401(k) Trad up to limit (24% deduction is solid) → backdoor Roth IRA → mega-backdoor if available → taxable. Inside the existing balances, move bonds and any REIT positions out of the taxable account into the Trad IRA, and put broad-market index funds and international stock into the taxable. Use the Roth for any speculative high-growth exposure (small-cap, crypto ETF, growth single names).

Q2: How much TLH alpha can I realistically expect?

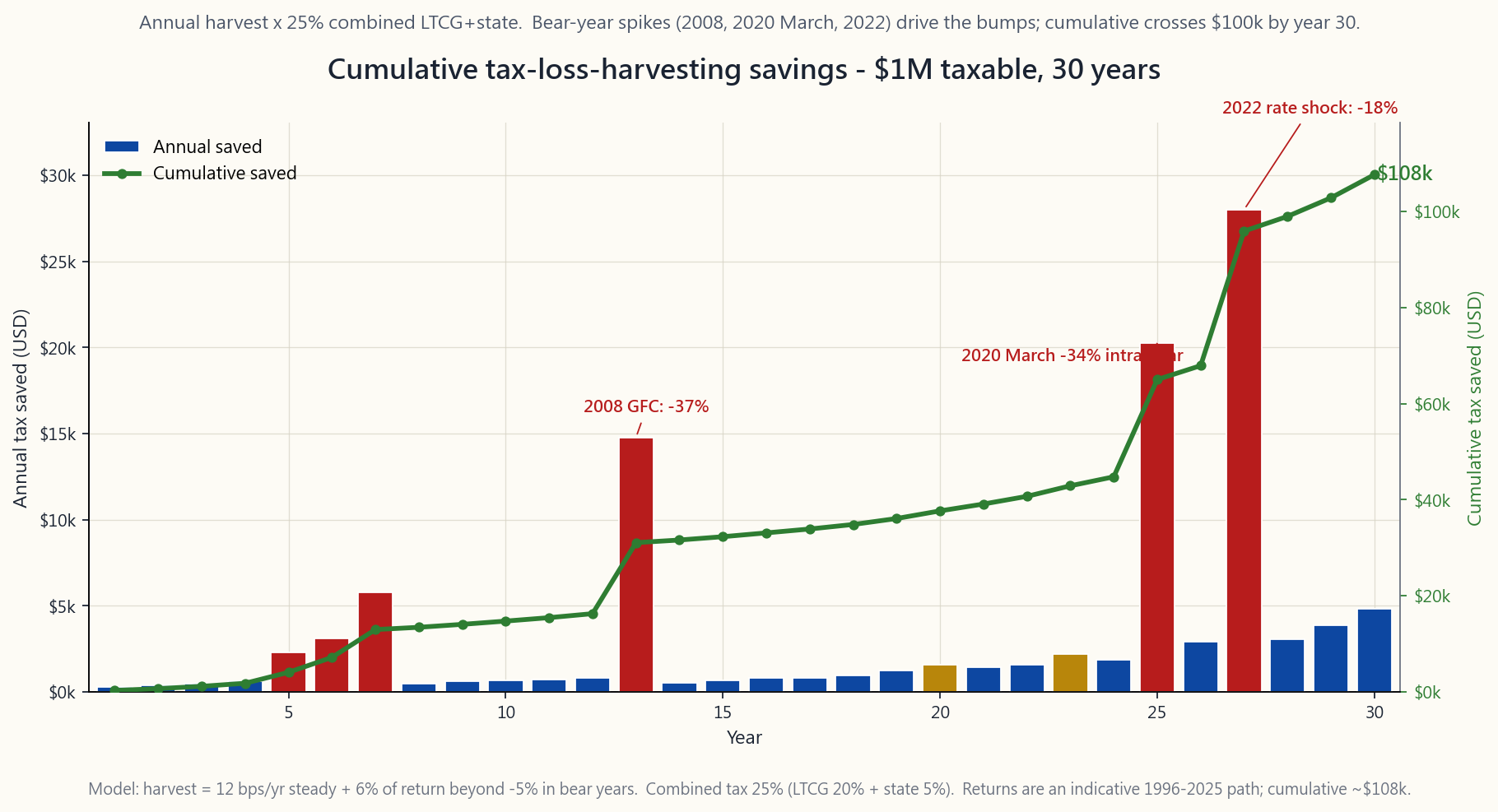

A: Empirically, 30-60 bps per year of after-tax alpha on a balanced stock portfolio at a 32% federal + 5% state bracket. The benefit declines as the cost basis of the portfolio rises (after a long bull run there is less left to harvest), and spikes in volatile years like 2008 and March 2020 ($15k+ on a $1M book in a single tax year). Cumulative over 30 years: roughly $100k on a $1M starting balance, depending on the path.

Q3: I'm above the Roth IRA income limit. Can I still contribute?

A: Yes, via the backdoor Roth IRA: contribute $7,000 non-deductibly to a Traditional IRA, then immediately convert it to Roth. The conversion is tax-free if you have no other pre-tax Traditional IRA balance (the pro-rata rule is the only trap — it does not apply if your only Traditional IRA balance is the one you just funded). For 401(k)s above the $23,500 employee limit, the mega-backdoor Roth is the analogous move.

Q4: When does Roth-conversion math work?

A: Run the comparison once a year. If your current marginal bracket on the converted dollar is lower than your *expected retirement* marginal bracket on the same dollar (after counting Social Security, pensions, and RMDs), convert. If higher, don't. The most reliable conversion years are early-retirement gap years (60-70) where ordinary income is low and you can fill the 12%/22% brackets cheaply.

**Q5: Are municipal bonds always better than Treasuries in a taxable account?**

A: Compare the tax-equivalent yield: muni yield ÷ (1 - federal bracket - state bracket if in-state). At 32% federal + 5% state, a 3.5% in-state muni has a TEY of 3.5% / (1 - 0.37) = 5.55%. A 4.2% Treasury has a TEY of 4.2% / (1 - 0.32) = 6.18% (state exemption already applied). Treasuries win in this case. The crossover is usually at the 35-37% federal bracket.

Q6: Can I tax-loss harvest in my IRA?

A: No — there are no taxes inside the IRA, so there are no losses to harvest. Worse, an IRA purchase of the substantially-identical security can trigger a wash sale on the loss you took in the taxable account, disallowing the deduction permanently (the basis adjustment cannot be applied to an IRA position).

Q7: What about state income tax — does it change asset location?

A: Yes, materially. Treasuries are state-exempt, so in a high-tax state (CA 13.3%, NY 10.9%, HI 11%) the case for holding Treasuries in taxable gets stronger because you save state tax that an IRA doesn't otherwise charge. Munis become more attractive than Treasuries above the 35% federal bracket in 0%-state states, and above 32% in high-state states.

Q8: What is "phantom income" on TIPS and why does it matter?

A: TIPS' principal adjusts for CPI inflation each month. The IRS treats that adjustment as taxable ordinary income in the year it accrues, even though you receive the cash only at maturity. In a brokerage you owe tax annually on imputed income; in an IRA the adjustment is irrelevant because nothing inside the IRA is taxed until withdrawal. TIPS belong in an IRA.

**Q9: I have a $200k embedded gain in AAPL. Tax cost to sell is $40k+. How do I reduce exposure without selling?**

A: Three options. Covered call — sell a 30-delta 60-DTE call, collect 1-2% premium, keep the gain unrealised, give up some upside (Week 27). Collar — buy a 25-delta put + sell a 25-delta call, paid for by the call premium, locks in a band without realising gain (Week 30). Synthetic-short overlay — short an equivalent index future against the position to hedge market beta only; idiosyncratic AAPL exposure remains. Each removes exposure without crystallising tax. Tax via options.

Q10: Should I prioritise Roth or HSA contributions?

A: HSA first — it is triple-tax (deductible going in, tax-free growth, tax-free withdrawals for medical), better than either Roth or Traditional. Then 401(k) up to the match. Then Roth or Roth 401(k) depending on bracket math. The HSA's only catch is that non-medical withdrawals before 65 incur a 20% penalty plus ordinary tax — after 65 the penalty is waived, leaving worst-case "Traditional IRA" treatment.

Q11: How does the 3.8% NIIT work in practice?

A: It applies to the lesser of (a) net investment income, or (b) MAGI above the threshold ($250k MFJ / $200k single). At $300k MAGI with $40k of investment income, you owe 3.8% × min($40k, $50k) = $1,520. The fix is the same as for any tax: either reduce investment income (asset location), reduce MAGI (Traditional 401(k) contributions), or do both. The practical effect is to push the real LTCG rate to 18.8% / 23.8% for affected households.

Q12: What does the Tax Optimizer in this lesson actually do?

A: It takes your federal bracket, state rate, taxable / Trad / Roth balances, and current age. It computes (1) the optimal asset-class location for each of eight standard sleeves; (2) projected after-tax wealth at age 65 under reasonable growth assumptions for each account type; (3) a suggested annual TLH harvest target based on your taxable balance and assumed equity volatility; and (4) a suggested annual Roth-conversion amount sized to fill your current marginal bracket without crossing the next break. It is not tax advice — it is a back-of-envelope sanity check on the moves described in this lesson.
