Side Lesson 19: Correlation Math — What Diversification Actually Does (and When It Stops)

---

1. Why This Is Important

Diversification is the closest thing to a free lunch in finance, but the lunch is mathematical and the menu has limits. Most retail investors carry a fuzzy version of "don't put all your eggs in one basket" without ever working through the actual algebra of how risk combines. This lesson fixes that. Once you can write down the portfolio-variance formula, four things stop being mysterious.

Owning more tickers does not equal diversification. Fifty US

large-cap stocks held simultaneously do not deliver fifty assets' worth of risk reduction. They deliver something closer to two and a half — because the pairwise correlation between them is roughly 0.6, and that one number puts a hard floor on portfolio volatility no matter how many names you stack on top.

The covariance matrix is the input that matters. Mean-variance

optimisation, risk parity, the L4 Fortress in Week 52 — all of them are, mechanically, sorting through the off-diagonal entries of the covariance matrix. If you do not have a feel for those numbers, every "optimised" allocation you read about is a black box.

Correlations are not stable — they spike in crashes. The most

uncomfortable fact in portfolio mathematics is that the diversification you measured in calm markets is not the diversification you receive in stressed ones. October 2008, March 2020, and the 2022 inflation regime are three separate demonstrations of the same arithmetic: when the market needs a diversifier, correlations of 0.2 in calm times converge toward 1.

A 40-year regime can flip in one quarter. Equity-bond

correlation ran around -0.4 from 2000 through 2021. In 2022 it flipped to +0.3, and 60/40 lost 17% in one year. The flip was detectable in advance through rolling correlation; the math gives you a number to watch, not just a feeling.

The interactive panel lets you push two sliders — number of assets and pairwise correlation — and watch portfolio volatility, the diversification ratio, and effective N change live. The static images ground you in the historical data: the 2002-2026 SPY/TLT rolling correlation chart, and the diversification curve that shows why pairwise correlation, not asset count, is the binding constraint.

---

2. What You Need to Know

2.1 The Portfolio Variance Formula — sigma_p^2 = w'Sigma w

Every portfolio risk calculation in finance reduces to one identity. For a portfolio with weights $w$ on $N$ assets and a covariance matrix $\Sigma$, the portfolio variance is:

$$ \sigma_p^2 = w' \Sigma w = \sum_{i=1}^{N} \sum_{j=1}^{N} w_i w_j \sigma_i \sigma_j \rho_{ij} $$

The double sum looks intimidating but the structure is simple:

• The diagonal terms ($i = j$) give $w_i^2 \sigma_i^2$. These are

the contributions of each asset's own volatility, and they shrink as you spread weight across more assets — for $N$ equal-weighted assets at vol $\sigma$, the diagonal contribution is $\sigma^2 / N$.

• The off-diagonal terms ($i \ne j$) give $2 w_i w_j \sigma_i

\sigma_j \rho_{ij}$. There are $N(N-1)$ of these, and they do not shrink with $N$ unless the correlations $\rho_{ij}$ are small.

That is the whole story of diversification compressed into one sentence: **diversification benefit comes entirely from the off-diagonal terms, and it stops working when the off-diagonals are big.**

For the simplest case — $N$ equal-weighted assets, all with vol $\sigma$, all with the same pairwise correlation $\rho$ — the formula collapses to:

$$ \sigma_p = \sigma \cdot \sqrt{\frac{1}{N} + \left(1 - \frac{1}{N}\right) \rho} $$

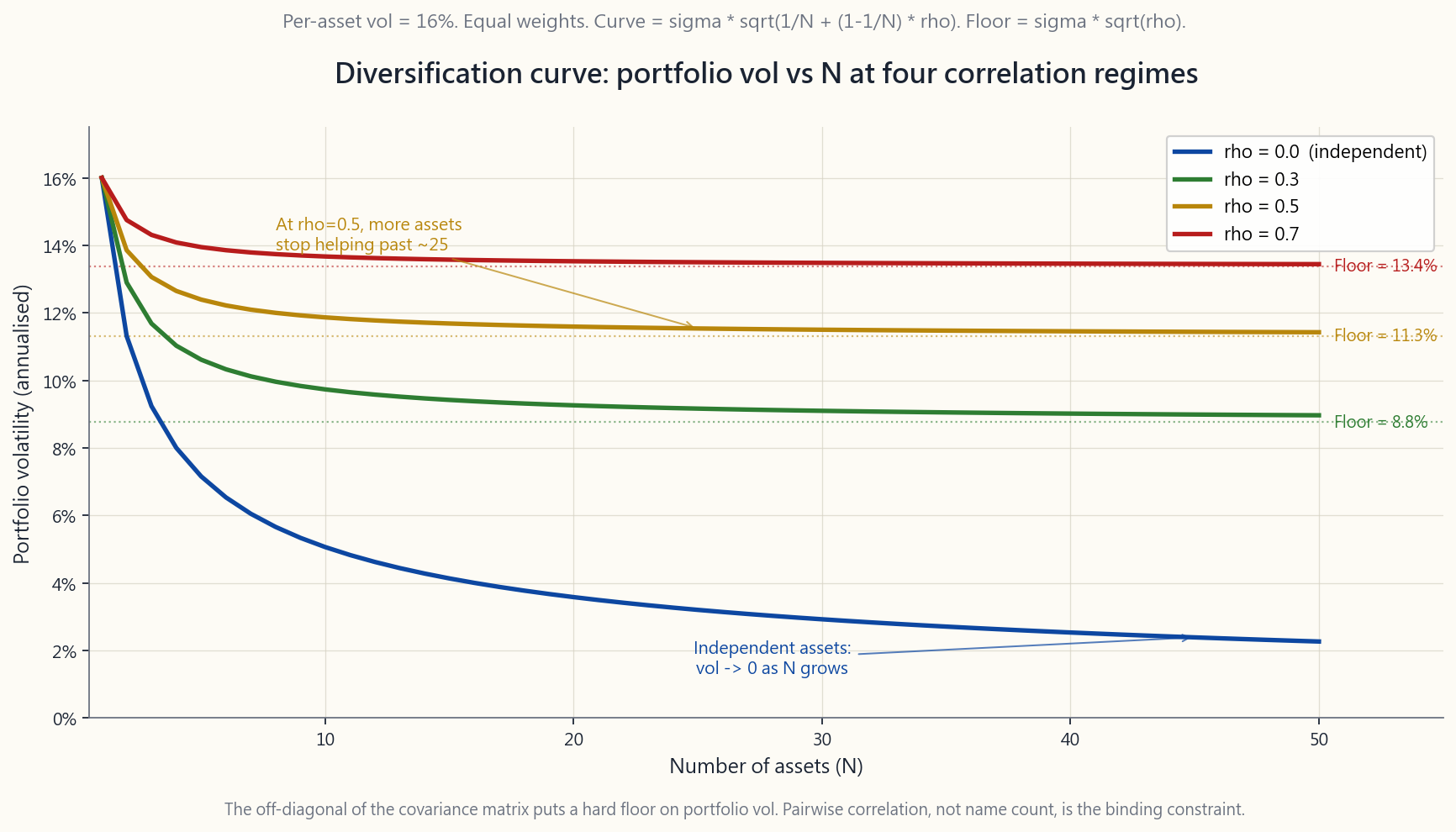

That single equation is what the diversification-curve chart plots.

2.2 The Diversification Floor — Why More Names Stop Helping

Take the limit of the formula above as $N \to \infty$. The first term goes to zero. The second term goes to $\rho$. So:

$$ \lim_{N \to \infty} \sigma_p = \sigma \cdot \sqrt{\rho} $$

Read that out loud. **The lowest portfolio volatility you can achieve, no matter how many assets you own, is sigma times sqrt(rho).** At $\sigma = 16\%$ (typical US large-cap):

Pairwise correlation	Floor vol (large N)
0.0	0% (in theory, never in practice)
0.1	5.1%
0.3	8.8%
0.5	11.3%
0.7	13.4%
0.9	15.2%

US large-cap stocks have an average pairwise correlation of roughly 0.6 in calm regimes. That puts the floor at about 12.4% — and you hit 90% of the way there with about 25-30 names. Stacking names 31 through 500 buys you essentially no incremental risk reduction.

The implication for retail investors: a portfolio of "fifty different US tech stocks" is not fifty assets. It is, for risk purposes, roughly two-and-a-half assets at $\rho \approx 0.7$.

2.3 Correlation Is Not Stable — The Crisis Convergence

The deeper problem is that the $\rho$ in the formula is empirical, not constant. Pairwise correlations are themselves random variables that drift over time, and the drift is not random — it is regime- dependent in a particularly cruel way.

In normal markets, equity-equity correlations cluster around 0.4-0.6, equity-bond correlations were near -0.4 from 2000 through 2021, and international diversification gave you somewhere between 0.7 and 0.85 on developed-market correlations. In crises, all of those numbers move toward +1.

• 2008 (Lehman / GFC). US-international equity correlation, calm

baseline ~0.80, peaked at 0.95 in October 2008. Investment-grade credit, calm correlation with stocks ~0.20, hit 0.85 in the four weeks after Lehman.

• 2020 (March COVID crash). Almost everything except cash and

long Treasuries traded in lockstep. The S&P 500 / EM equity correlation, normally 0.7, hit 0.97 over the 5-week sell-off. Even gold sold off briefly with stocks on the worst day (March 16) as margin calls forced liquidation of liquid assets.

• 2022 (inflation regime). Long-duration Treasuries, the

textbook equity hedge for two decades, fell with stocks for the first time since 1969. The 90-day SPY/TLT rolling correlation flipped from -0.40 to +0.30 in eight weeks and stayed positive through year-end.

The pattern has a name in academic literature: *correlation breakdown (or, more accurately, correlation convergence under stress*). The technical mechanism is that during a forced deleveraging, every leveraged book sells what is liquid, not what is expensive. That makes asset prices move together because they are all being moved by the same flow, not by their underlying fundamentals.

2.4 Rolling Correlation — The Risk Metric to Watch

Static historical correlation is a long-run average. The number that matters for portfolio construction is the current correlation, and the standard way to estimate it is with a rolling window:

$$ \rho_t^{(90)} = \mathrm{corr}\big(r_{t-90:t}^{A}, r_{t-90:t}^{B}\big) $$

A 90-day window on daily returns is the institutional default — long enough to be statistically stable, short enough to detect regime shifts within a quarter. Shorter (30-day) windows are noisier; longer (252-day) windows lag actual regime changes by months.

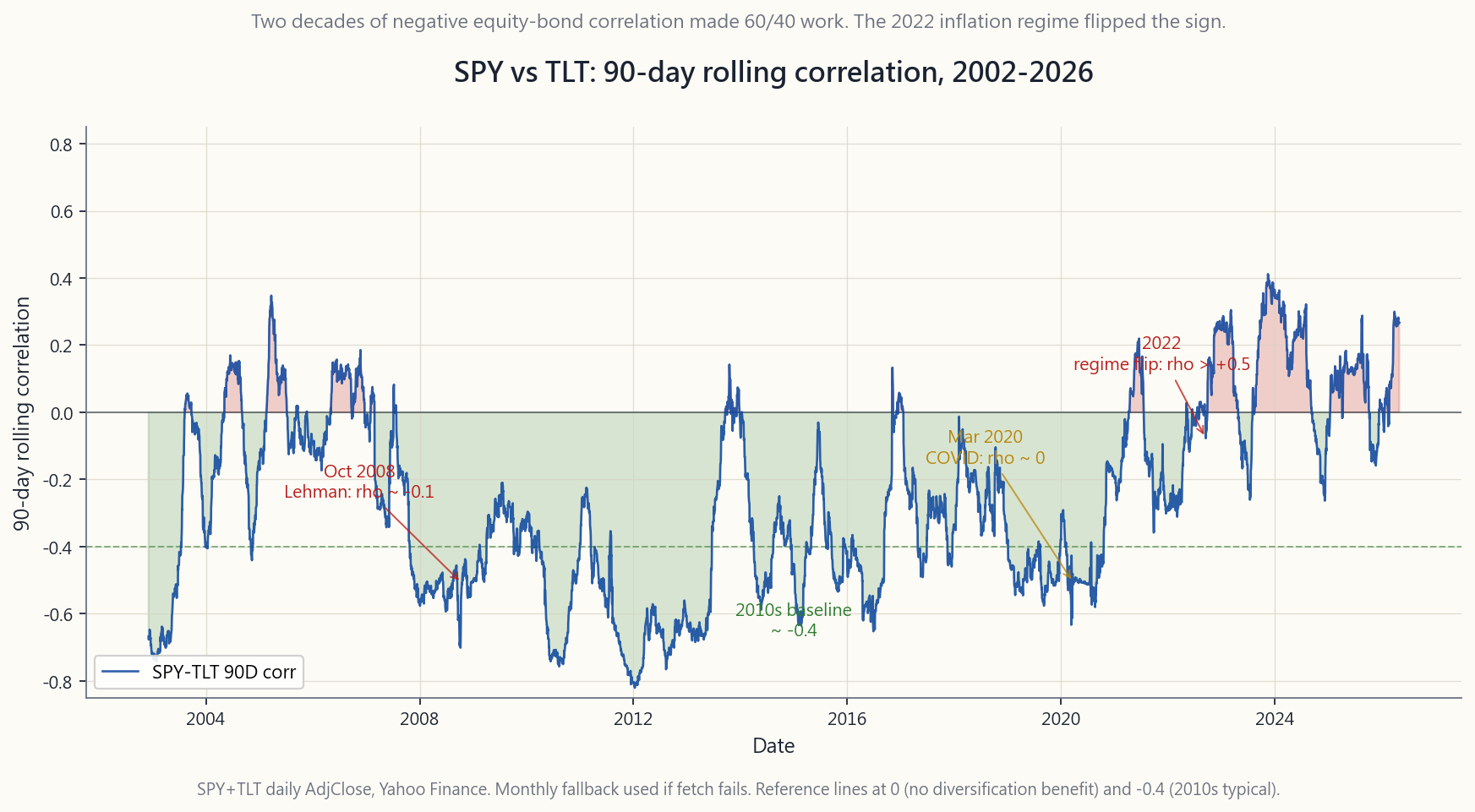

The SPY/TLT rolling correlation is the canonical example. From 2002 through 2021 it averaged -0.30 to -0.45, with brief excursions to zero around 2013 (taper tantrum) and 2018 (Q4 hike scare). Then in Q1 2022 it crossed zero, peaked above +0.50 in mid-2022, and has oscillated in the range -0.10 to +0.30 ever since. The Apr 2026 print is roughly +0.10 — meaningfully different from the 2010s baseline of -0.40.

The practical use of this chart: if you are running a 60/40 portfolio, the rolling correlation tells you how much diversification benefit you are currently receiving. A correlation of -0.4 means your bonds are doing real work. A correlation of +0.3 means they are mostly just adding duration risk on top of equity risk.

2.5 Monte Carlo Intuition — 10 Assets, Two Correlation Regimes

The cleanest way to feel the formula is to simulate. Take 10 assets, each with 16% annual volatility (the long-run number for US large-cap), equal weights of 10% each. Run two scenarios:

• Independent assets ($\rho = 0$): portfolio vol = $\sigma /

\sqrt{N} = 16\% / \sqrt{10} \approx 5.1\%$. A 3x reduction.

• Correlated assets ($\rho = 0.5$): portfolio vol = $\sigma

\sqrt{1/10 + 0.9 \cdot 0.5} = 16\% \cdot \sqrt{0.55} \approx 11.9\%$. A 1.3x reduction.

The 50%-correlated portfolio gets one quarter of the diversification benefit of the uncorrelated portfolio. In the limit of large N:

• Independent assets: vol $\to 0$.
• $\rho = 0.5$ assets: vol $\to \sigma \sqrt{0.5} = 11.3\%$.

If the menu of "assets" is "fifty US large-cap stocks," your effective correlation is closer to 0.6, your floor is about 12.4%, and stacking more names past about 25 is decoration.

If the menu is genuinely orthogonal — equities, long Treasuries, short Treasuries, gold, managed futures, options-based defensive strategies — you are using the barbell and the four-tranche framework to get correlations across the categories down toward zero, even if within each tranche the correlations are high.

2.6 Two Practical Implications

First, **the case for cross-asset-class diversification is much stronger than the case for cross-stock diversification.** Adding the 50th US large-cap stock to a 49-stock portfolio reduces vol by about 0.05 percentage points. Adding 20% in long Treasuries to a 100%-equity portfolio reduces vol by 3-4 percentage points in normal regimes. The covariance matrix says you should spend your diversification budget on asset classes, not on names.

Second, stress-test your correlations before you rely on them. The textbook rule is: assume correlations rise toward 0.7-0.8 in any serious crisis. If your portfolio's diversification only works at calm correlations, you do not have a diversified portfolio — you have a leveraged bet on the calm regime continuing. The 60/40 portfolio in 2022 lost 17% precisely because investors were running it at implied correlations of -0.4 when the true crisis correlation was +0.3.

This is the formal version of Horace's recurring point that the tail of the distribution wags the dog. Diversification that fails in the tail is not diversification — it is a fee paid in calm markets for nothing in return.

---

3. Common Misconceptions

Misconception 1: "Owning a lot of stocks is diversification." For a single asset class with average pairwise correlation around 0.6, you reach 90% of the achievable risk reduction with about 25 names. Beyond that the marginal benefit is rounding error. True diversification requires different asset classes, not more names.

Misconception 2: "Zero correlation means assets cancel out." Zero correlation only means the assets are linearly independent in expectation. On any individual day they can both fall, and historically gold and stocks (long-run correlation near zero) have had plenty of joint down days. Zero correlation reduces expected portfolio variance; it does not produce a hedge.

Misconception 3: "Negative correlation is always good." A perfectly negatively correlated asset would let you build a zero-volatility portfolio. Real negative-correlation assets (long Treasuries vs equities, in 2000-2021) only hold that property in specific regimes, and they generally have lower expected returns. The "hedge" is paid for in lower CAGR.

Misconception 4: "Historical correlation is a constant." Correlation is a moving statistical estimate, not a physical constant. The SPY/TLT rolling 90-day correlation has ranged from -0.7 to +0.6 just since 2002. Treating any single number as "the" correlation will mis-size your portfolio at the worst time.

Misconception 5: "International stocks add a lot of diversification." The US-international developed correlation has been around 0.85 since 2010, up from 0.70 in the 1990s. The benefit is real but small. International stocks are mostly the same asset class — global equity beta — denominated in different currencies.

Misconception 6: "If two assets are uncorrelated they have low joint risk." Uncorrelated does not mean independent. Two assets can have zero correlation and still have catastrophic joint left-tail risk — correlation only measures the linear relationship of the marginal distributions. This is one reason copula-based methods replaced linear correlation in serious risk management.

Misconception 7: "Correlation breakdown is a recent phenomenon." 1987, 1998 (LTCM), 2001, 2008, 2011 (US debt ceiling), 2020, 2022 — every serious market dislocation in the past 40 years has produced a visible spike in cross-asset correlation. The pattern is the modal behaviour of crises, not an exception.

Misconception 8: "I can diversify away crash risk." You can diversify away idiosyncratic risk — the risk that a single firm or sector blows up. You cannot diversify away systemic risk — the risk that the entire financial system deleverages at once. The covariance matrix in a crisis is dominated by a single common factor, and there is no portfolio of risky assets that escapes it. Cash, short Treasuries, and tail-hedge strategies are the only escape.

Misconception 9: "Effective N is just the number of assets." Effective N is $1 / \sum w_i^2$, which equals $N$ only for equal weights. A 50%/50% two-asset portfolio has effective N = 2. A 99%/1% portfolio has effective N = 1.02 — almost no diversification despite holding two assets. Concentration in a single position destroys the math regardless of how many names appear on the statement.

Misconception 10: "Risk parity is correlation-aware diversification." Risk parity weights $w_i \propto 1/\sigma_i$, which is correlation- ignorant. True correlation-aware portfolios use the full covariance matrix in a mean-variance optimisation. Risk parity got crushed in 2022 partly because its bond allocation assumed the historic equity-bond correlation, which had just flipped.

---

4. Q&A

**Q1: I own SPY plus 30 individual US large-caps. How much diversification benefit am I getting from the 30 stocks?** Almost none. Single-name US large-caps have correlation ~0.95 with SPY. The 30 stocks are essentially a noisier version of SPY at higher turnover and tax cost. If the 30 stocks have implicit beta tilts (small caps, value, momentum), those might add factor exposure, but the diversification component is rounding error. Sell the 30 names and buy more SPY, or replace them with a different asset class.

**Q2: What pairwise correlation do I need to assume for stress scenarios?** Use 0.8 across all risky assets as a working assumption. That is roughly what 2008 and 2020 produced for risky-asset pairs, and it is a realistic worst case for forward planning. If your portfolio only diversifies at $\rho = 0.4$, it is fragile. If it still helps at $\rho = 0.8$, it is robust.

Q3: How long a rolling window should I use for correlation? 90 trading days (one quarter) is the institutional default for detecting regime changes. 252 days (one year) is more stable but lags. 30 days is too noisy for portfolio construction but useful for diagnosing real-time stress events. The interactive does not let you change the window, but the chart was rendered at 90 days.

**Q4: My portfolio's actual volatility was lower than the formula predicted. Why?** Either your assets had lower correlation than you assumed, or you got lucky on the realised path. Single-period vol estimates from 5 or 10 years of monthly data have wide confidence intervals — the standard error of an annualised vol estimate from 60 monthly observations is roughly 9% relative. Your 12% predicted, 11% realised difference is not statistically meaningful.

Q5: Does adding gold reduce portfolio risk? Yes, modestly. Gold's correlation with US equities has been near zero over multi-decade windows, and slightly negative in inflation-stress regimes. A 10% gold sleeve in a 60/40 reduces vol by roughly 0.5 percentage points and improves the equity-bond crash response. It is not a hedge in the way puts are; it is a low-correlation diversifier.

Q6: Is risk parity the right way to handle correlations? Risk parity weights by inverse volatility, which is not correlation-aware. It works in regimes where correlations are stable and asset volatilities are the only thing changing. It fails when correlations move (like 2022). True correlation-aware allocation needs the full covariance matrix, which is why mean-variance and Black- Litterman frameworks dominate institutional portfolios.

**Q7: How does a 50% correlation actually feel in a 10-asset portfolio?** At 16% per-asset vol and equal weights, $\rho = 0.5$ gives portfolio vol of 11.9%. Compare to $\rho = 0$ at 5.1%. You are getting roughly 26% of the diversification benefit you would get from independent assets. If the assets were 30 instead of 10, the $\rho = 0.5$ vol falls only to 11.4% — almost no improvement past 10. This is the correlation floor in action.

Q8: Can the 2022 equity-bond correlation flip happen again? Yes — it is the historical base case in inflation regimes. Equity-bond correlation was positive on average from 1965 through 1998, then negative from 2000 through 2021. The driver is whether inflation or growth is the dominant risk: when inflation is the worry, both equities and bonds get hurt by rate hikes; when growth is the worry, bonds rally as a flight-to-quality. The post-2021 inflation regime brought back the 1965-98 behaviour.

**Q9: What's the right number of asset classes for a retail portfolio?** Five is enough: US equities, international equities, US Treasuries (short and long together count as one), gold or commodities, and one defensive overlay (managed futures, tail hedging, cash). Each additional class adds vanishing benefit, each requires monitoring and rebalancing, and the four-tranche-plus-cash framework is basically this list.

Q10: How do I actually compute portfolio variance from real data? Take monthly returns for each asset over 5-10 years. Compute the sample covariance matrix (pandas .cov() does it). Multiply $w' \Sigma w$ for your weight vector. Take the square root. Annualise by multiplying by $\sqrt{12}$. The single biggest pitfall is using arithmetic means and arithmetic vols on monthly data and then annualising — that overstates vol by ignoring serial correlation. Better to compute vol on monthly log returns and annualise.
