Week 44: Market Microstructure — Order Types, NBBO, Dark Pools, and Payment for Order Flow

---

1. Why This Is Important

Every "buy" click on a brokerage app sets in motion a routing machine that costs more than the zero commission suggests. The plumbing of US equity markets — exchanges, dark pools, wholesalers, smart-order routers, microwave links between New Jersey and Chicago — was redesigned by Reg NMS in 2007, and it has been quietly siphoning a few basis points out of every retail and institutional fill for two decades. Most investors never see it. That ignorance is the problem.

Hidden costs eat returns more reliably than fees do. The advertised commission is $0. The bid-ask spread, the price impact of size, the half-tick the wholesaler captures, the timing risk while a TWAP works through the day — those add up to 5-30 basis points on a typical retail equity round-trip and 30-80 bps on a $1M institutional ticket. Over a 30-year compounding career a constant 20 bps drag costs roughly 6% of terminal wealth. You don't see the bill, but it is paid.

Order type selection is one of the few free levers a retail investor actually has. A market order in AAPL at 3:59 PM behaves differently from a marketable limit at the NBBO, which behaves differently from a midpoint peg in a dark pool. Structural alpha exists but is rare and mostly arbed out by HFT firms — what is left for retail is the defensive version of microstructure literacy: stop being the dumb flow.

Liquidity disappears at the worst possible moment. The 2010 Flash Crash, the August 2015 ETF dislocation, the March 2020 COVID gap, the 2024 yen-carry unwind — every regime episode rhymes with the same fact: market makers widen quotes or pull them entirely when realised vol spikes. The vol tail wags the dog here. If your stop-loss is a market order parked in an illiquid name during a volatility event, you will be the print at the bottom.

The retail-vs-institutional routing gap is real, and the rules favour you only on small size. PFOF wholesalers (Citadel Securities, Virtu, Susquehanna, Jane Street) actually price-improve sub-1,000-share retail orders by a fraction of a cent, because retail flow is uninformed and profitable to internalise. The same machinery taxes you the moment your order grows large enough to look informed — at roughly 5,000-10,000 shares the price improvement vanishes and slippage shows up. Knowing where the inflection is keeps you from accidentally walking the book.

This week is not about becoming a trader. It is about understanding what happens after you click, so that your fills stop being a tax on your savings.

---

2. What You Need to Know

2.1 Reg NMS, the NBBO, and why fragmentation exists

Regulation NMS (National Market System), effective 2007, is the rulebook that holds modern US equity markets together. The two pieces you must know are the Order Protection Rule (Rule 611) — no exchange may execute a trade at a price worse than the best displayed quote on any other exchange — and the NBBO (National Best Bid and Offer), the consolidated top-of-book across all 16 lit exchanges.

The unintended consequence of forcing every venue to honour every other venue's quote is that it became economically rational to spin up more venues. As of April 2026 the US has 16 registered stock exchanges (NYSE, Nasdaq, BATS/Cboe BZX/EDGX/BYX/EDGA, IEX, MEMX, MIAX, Long-Term Stock Exchange, etc.) plus roughly 30 alternative trading systems (ATSs, i.e. dark pools). Each exchange charges different maker/taker rebates, and brokers' smart-order routers slice your order across them based on rebate economics, latency, and fill probability. You see one fill at one price; the order may have touched five venues in 200 microseconds. Reg NMS guarantees you weren't filled worse than NBBO; it guarantees nothing about whether you got the midpoint, which is where the spread cost lives.

2.2 Order types: market, limit, stop, stop-limit, IOC, FOK, and the algos

The retail menu has six standing-order types and roughly four institutional algos. Internalise the trade-offs once and you'll never use the wrong one again.

• Market order. "Fill me now at whatever clears." Guaranteed fill, zero price guarantee. Fine for 100 shares of SPY at 11 AM. Catastrophic for 5,000 shares of a $30 small-cap or a $200 illiquid options contract.
• Limit order. "Fill at $X or better, or don't fill." Default for any retail trade larger than 200 shares or in any name with a spread wider than a penny. A marketable limit (buy limit at the offer) gets you the certainty of a market order with a hard ceiling.
• Stop / stop-loss. "Trigger a market order when last trade hits $X." Do not use in illiquid names. In a gap-down open at -10%, a stop at -5% sells you at -10%, not at -5%.
• Stop-limit. Trigger a limit order instead of a market order on the same condition. Protects against terrible fills, but may not fill at all in a gap.
• IOC (Immediate-Or-Cancel). Fill what you can right now at the limit price; cancel the rest. Used by smart-order routers to ping multiple venues without leaving residual exposure.
• FOK (Fill-Or-Kill). Fill the entire size at the limit, immediately, or cancel everything. Rare for retail; used for block prints and arbitrage legs that must execute together.

Above standing orders sit the institutional execution algorithms: TWAP (time-weighted average price — equal slices across a window), VWAP (volume-weighted — heavier near open and close where volume is), Implementation Shortfall (front-loaded against urgency), and POV (percent-of-volume — track a target participation rate). These exist because clicking a 500,000-share market order would print a fill 50-200 bps worse than the day's VWAP and tip off every HFT in Secaucus that someone is moving size.

2.3 Dark pools and the 15-45% off-exchange share

A dark pool is an ATS that accepts orders without displaying quotes pre-trade. Trades print to the consolidated tape after execution but before then no one outside the pool knows a buyer at $X exists. As of 2025 roughly 15% of US equity volume executes inside formal dark pools (Goldman SIGMA-X, UBS ATS, Credit Suisse Crossfinder, IEX, Liquidnet) and another 30% executes off-exchange via wholesalers and single-dealer platforms — together "off-exchange" volume runs 40-45% of consolidated tape on most days.

Why dark pools exist: a $50M institutional buy program shown openly on a lit exchange invites HFT front-running. Cross the same size at the midpoint inside a pool with another natural seller and both sides save the spread plus avoid the impact. Why they're controversial: pool operators historically routed customer orders against their own prop trades, and post-trade tape latency means dark-pool prints can be used to update lit quotes faster than retail can react. The SEC has fined every major pool operator at least once for misrepresenting how the pool actually worked.

Practical retail takeaway: when your broker says "executed at the midpoint" or "PFOF rebate," your order touched a wholesaler's internal pool, not an exchange. That is not necessarily bad — for sub-1,000-share retail flow, midpoint internalisation is often cheaper than crossing the spread on a lit venue.

2.4 Payment for order flow (PFOF)

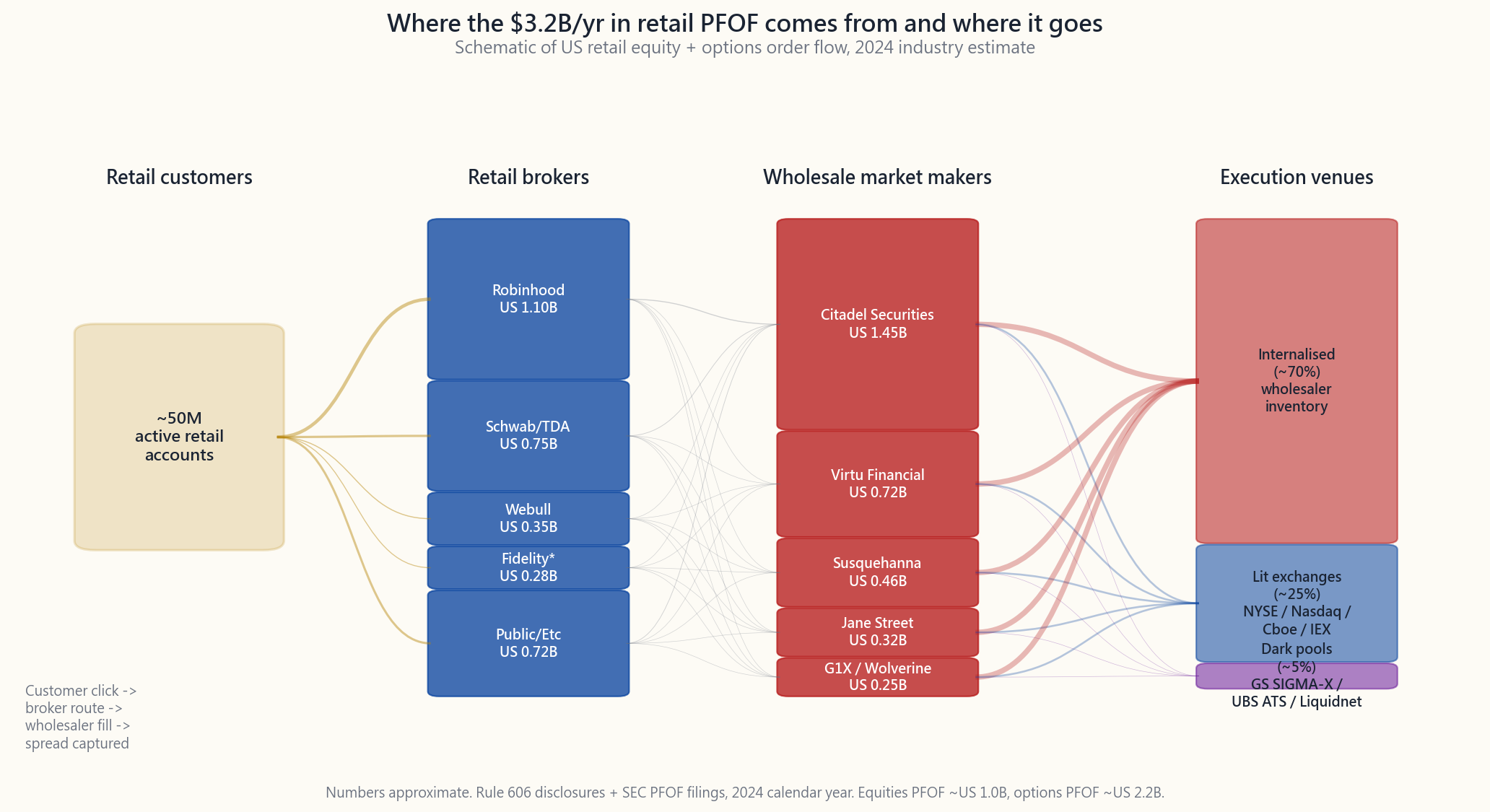

PFOF is the deal where a retail broker (Robinhood, Schwab, Webull, Public, Fidelity for options) routes its customer orders to a wholesale market maker (Citadel Securities, Virtu, Susquehanna, Jane Street, G1X) in exchange for a per-share payment. Industry-wide PFOF revenue ran roughly $3.0-3.5 billion in 2024 across equities and options, with options paying ~10× equities per contract because options spreads are wider and the wholesaler's profit per fill is larger.

The economic claim that defenders make is that retail flow is uninformed — when a Robinhood user buys 25 shares of NVDA, the trade carries no negative selection for the market maker. Citadel Securities can internalise the order at NBBO + 0.0002 (a fraction of a cent of price improvement), pay Robinhood half a penny per share for routing it there, and still make money from the spread because the trade is uncorrelated with short-term price moves. The math works because retail is dumb flow in the technical, non-pejorative sense.

The critique: the routing decision optimises for broker revenue, not customer execution quality. SEC Rule 605/606 disclosures show measurable variation in execution quality across wholesalers. The 2021 GameStop episode (Robinhood's PMCC default risk forced trading restrictions) revealed how concentrated this plumbing is — a single wholesaler clearing 40%+ of a broker's volume creates structural fragility.

2.5 Latency arbitrage and the microsecond economy

Reg NMS guarantees the NBBO at the moment of execution, but the NBBO is a moving target updated by the SIP (Securities Information Processor) consolidator. The SIP runs on a fibre path with consolidation latency of roughly 350-500 microseconds as of 2026. Direct exchange feeds (the proprietary feeds each exchange sells to HFT firms) update the same data in ~50 microseconds. The 300-microsecond gap between SIP and direct feeds is where latency arbitrage lives.

Concrete pattern: an HFT firm sees a buy print on Nasdaq's direct feed at $50.05. The SIP-consolidated NBBO still reads $50.04 / $50.06 because the SIP hasn't propagated yet. The HFT crosses the SIP-quoted offer on every other exchange before those exchanges update — picking off orders that were stale by 200 microseconds. IEX (the "speed bump" exchange founded by the Flash Boys protagonists) responded with a 350-microsecond physical coil that delays inbound orders, neutralising the gap. Roughly 3-4% of US equity volume routes to IEX as of 2026; the rest of the market still runs on the speed-favours-the-fast model.

Microstructure sits in the "structural" bucket of alpha sources — a real source, almost entirely captured by the fastest co-located firms. As a retail or even mid-tier institutional trader, you cannot win this race; you can only stop bleeding to it by using limit orders, avoiding the open and close where SIP latency widens, and using brokers whose routers ping IEX and dark pools first.

2.6 Slippage on size: the $1M-trade reality

For trades under ~$10,000 in liquid names, microstructure costs are roughly the half-spread (1-3 bps) plus possibly a fraction of a cent of negative impact (i.e. price improvement) from PFOF. Above that, slippage scales roughly with the square root of size relative to ADV (average daily volume), the so-called Almgren-Chriss square-root impact model.

A back-of-envelope April-2026 calibration for liquid US equities: expected total slippage in basis points ≈ 10 × √(order size / 1% of ADV). A 1%-of-ADV order costs ~10 bps; a 4%-of-ADV order ~20 bps; a 25%-of-ADV order ~50 bps. SPY at 80M ADV absorbs $40M+ orders almost invisibly; a $1M order in a $200M-mcap small-cap with 200k ADV is 50%+ of the day's volume and will move the print 100-300 bps.

The institutional response is to break large orders into a TWAP/VWAP across hours or days. The retail equivalent is: scale into positions over multiple sessions if your ticket is more than 0.1% of the name's ADV. The interactive lets you feel this scaling first-hand.

2.7 The 2010 Flash Crash and what it taught the plumbing

May 6, 2010, 2:32 PM ET: the Dow falls roughly 9% (about 1,000 points) in minutes and recovers most of it by 3:08 PM. The post-mortem identified a single $4.1B sell program in E-mini S&P futures executed by a Kansas mutual fund, run via a poorly-parametrised algo with no price floor. That program drained futures-market liquidity, triggered cross-asset HFT arbitrage selling in equities, and as realised volatility spiked, equity market makers withdrew quotes simultaneously to avoid adverse selection. With no resting bids, a thin layer of stub-quote sells (placeholder $0.0001 bids) became actual prints — Accenture traded at $0.01 and Sotheby's at $99,999.99 — for a few seconds.

The regulatory response: single-stock circuit breakers (LULD bands — Limit Up/Limit Down — that pause trading when a stock moves 5% / 10% / 20% off its 5-minute average), market-wide breakers at -7% / -13% / -20% from the prior close, and the consolidated audit trail (CAT) for forensic reconstruction. These have prevented a repeat but the underlying fragility — market makers withdrawing in tail volatility — is unchanged. The fat tail is what wags the system.

---

3. Common Misconceptions

"Zero commission means zero cost." False. PFOF + spread + slippage typically run 3-15 bps for retail equity round-trips, paid invisibly.

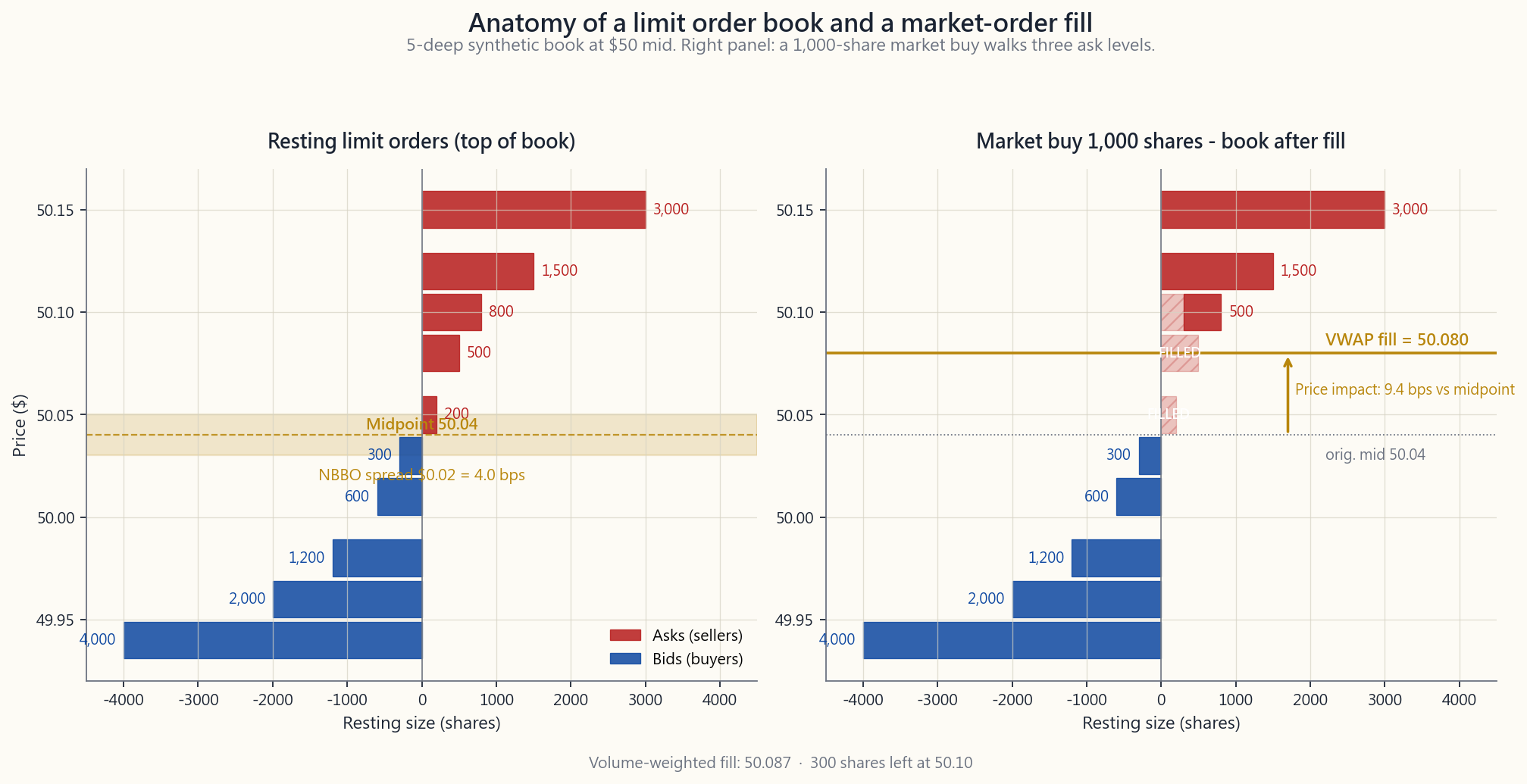

"Market orders always fill at the displayed price." False. They fill at whatever clears the book at that microsecond; in a 500-share order through a 100-share-deep top of book, you walk down to the next level.

"Dark pools are for shady trades." Misleading. They exist primarily to let institutions cross size without telegraphing intent to HFT. The shadiness is in how some operators ran them, not in the concept.

"PFOF brokers give worse execution." Mostly false for sub-1,000-share retail orders. Wholesalers actually price-improve small retail orders. PFOF gets economically harmful only at larger size or in options.

"HFTs are pure parasites that add no liquidity." Empirically false on average. HFT-provided liquidity has tightened equity spreads from ~5 cents pre-2007 to ~1 cent in liquid names. They withdraw in stress, which is the legitimate critique.

"My stop-loss order protects me against gaps." False. A stop becomes a market order on trigger; a gap-down opens you at the gap. Use stop-limit (with the cost that it may not fill).

"The SIP NBBO is the real-time price." False. SIP runs ~300 microseconds behind direct feeds. The "real" market price is the direct-feed NBBO, available only to firms paying for direct connectivity.

"Big institutions get better prices than retail." False on small size, true on large. A 100-share retail order gets midpoint; a 100,000-share institutional order pays 20-50 bps of impact.

"VWAP execution is risk-free." False. VWAP is exposed to all intraday market moves during the execution window; if the stock rallies 2% during a 6-hour VWAP, you bought at average +1%, not at the open.

"Microstructure alpha is available to retail." Mostly false — the structural alpha sources are arbed out by co-located HFTs. What is left for retail is defensive — not being the dumb counterparty.

---

4. Q&A Section

Q1: Should I always use limit orders instead of market orders? A: Almost always yes for any order over 100 shares or in any name with a spread wider than a penny. The exception is highly liquid SPY/QQQ/AAPL-style names at mid-day where the spread is one tick and the cost of a possible non-fill is higher than the half-tick spread cost. Even then, a marketable limit (buy at the offer) is strictly safer.

Q2: How much does PFOF actually cost me as a retail trader? A: On sub-1,000-share equity orders in liquid names, roughly nothing — possibly slightly negative cost (price improvement). On options, about 5-15 cents per contract relative to the best alternative. On larger equity orders (5,000+ shares), the wholesaler stops improving and the spread cost becomes real. So: small + liquid = fine; large or options = scrutinise.

Q3: Can I trade through IEX to avoid latency arbitrage? A: Yes — most major brokers let you specify IEX as a routing destination, often as part of a "speed bump" or "long-term investor" routing preset. IEX accounts for ~3-4% of US equity volume and its 350-microsecond delay neutralises the SIP-vs-direct-feed gap. The cost is occasionally slower fills.

Q4: What is the practical difference between a stop and a stop-limit on a long position? A: A stop becomes a market sell when triggered — you will fill, possibly at a much worse price in a gap. A stop-limit becomes a limit sell — you may not fill at all if the price gaps through the limit. Stop is for "I want out, full stop." Stop-limit is for "I want out at a defined price or I'm willing to ride it out."

Q5: How do I size a TWAP order for retail? A: As a rough rule, slice anything that exceeds 0.5% of the name's ADV into 4-8 sub-orders across the trading day, leaving the open and close (highest spreads) thin. Most retail brokers don't expose true TWAP, but you can manually approximate. For S&P 500 names this only kicks in around $1M+ tickets.

Q6: Why does my fill price differ from the price I see on the screen at click time? A: Three sources: (1) your screen shows the SIP NBBO with ~300 µs latency; (2) your order took 50-500 ms to reach the broker, who routed it across multiple venues; (3) within those latencies the NBBO moved. For 100 shares of a liquid name, the variance is usually a fraction of a cent. For thinner names it can be 5-50 cents.

Q7: Are dark pools available to retail investors? A: Indirectly, yes — your broker's smart-order router likely pings several dark pools on your behalf before routing to a lit venue. You don't choose the pool, but execution may already happen there. Direct dark-pool access is institutional-only.

Q8: What is the harm in market-on-close (MOC) orders? A: MOC orders execute at the official closing auction price, which is well-defined for liquid names but can be heavily influenced by index rebalancing flows in the last 5 minutes. For routine retail use it's fine; for sensitive entries near earnings or rebalances, prefer a marketable limit before the auction.

Q9: How does payment for order flow interact with options? A: Heavily. Options PFOF is roughly 10× equity PFOF per share-equivalent because options spreads are wider, retail-options flow is more uninformed, and there are fewer competing market makers. Rule 606 reports show ~80% of retail options flow goes to ~5 wholesalers. The cost shows up as the difference between your fill and the option's NBBO midpoint, often 5-15 cents per contract.

Q10: Did the 2010 Flash Crash actually result in retail losses? A: Mostly no for resting positions — the recovery within 30 minutes meant buy-and-hold positions barely budged. The losers were investors with active stop-loss orders that triggered and filled at the ridiculous prints; many of those trades were busted (cancelled by the exchanges) under the "clearly erroneous" rule, but the busts were inconsistent and some retail traders were left with locked-in losses. The lesson is barbell-shaped: never let a stop-loss order be the line between solvent and not.

Q11: What is "internalisation"? A: When your broker's wholesaler executes your order against its own inventory rather than routing to an exchange. Wholesaler captures the spread; you get NBBO or slightly better; the trade prints to the tape but never touched a public order book. Roughly 30% of US equity volume is internalised in 2026.

Q12: Is microstructure something I need to think about for buy-and-hold investing? A: For sub-$50k positions in liquid US equities held for years, no — costs are negligible relative to total return. For accumulation phases where you're buying $5k of a small-cap monthly, yes — bid 30 bps below NBBO with a limit order rather than market-buying. For decumulation in retirement where you're selling 6-figure tickets, definitely — break orders into multi-day TWAPs.
