Side Lesson 17: The Fed — Dual Mandate, Dot Plot, and the Cascade Into Your Portfolio

---

1. Why This Is Important

The Federal Reserve sets the price of money in the largest reserve currency on Earth. Every other yield in the global system — the 2-year Treasury, the 10-year, the 30-year mortgage, the BBB corporate, the discount rate inside a Gordon-growth equity model — is built on top of that price. When the Fed moves, every asset on every brokerage statement re-prices. Most retail investors treat FOMC week as background noise. That is a mistake.

Four reasons this side lesson earns a full slot rather than a paragraph in the bond chapter:

One forty-year regime ended on your watch. From the August 1981

Volcker peak (Fed funds 19%) until the March 2022 lift-off, every tightening cycle ended at a lower terminal rate than the previous one. That four-decade bond bull is now over. The 2022-23 cycle delivered 525 basis points in eighteen months — the fastest pace since Volcker — and the post-2024 normalisation is settling at a "neutral" closer to 3% than to the 0% the post-2008 generation memorised. Anyone whose mental model of the Fed was formed between 2009 and 2021 has the wrong calibration.

The transmission mechanism is mechanical, not magical. The Fed

sets one rate. That rate flows to SOFR (overnight, one-for-one), to the 2-year (about 0.85 pass-through), to the 10-year (slope plus term premium), to the 30-year mortgage (10-year plus a roughly 175-bp primary-secondary spread), and finally to the discount rate inside every equity multiple. The whole chain is studied, regressed, and priced every day by a thousand desks. You can use the same maths.

The dot plot is the loudest forward-guidance signal in markets.

Four times a year the FOMC publishes the Summary of Economic Projections — sixteen anonymous dots, one per participant, each showing where they think the Fed funds rate will be at year-end for the next three years and "longer run." The market trades against those dots within seconds. If you cannot read the dot plot, you are trading blind through the four most volatile weeks of the year.

**Balance-sheet policy is the new lever, and almost nobody on a

retail screen is watching it.** When the Fed runs off Treasuries and mortgage-backed securities (QT), it tightens without moving the policy rate. Conversely, when it buys (QE), it eases without cutting. The 2008-2014 expansion ($870B → $4.5T), the 2020 surge ($4.2T → $9.0T), and the 2022-2026 unwind ($9.0T → $6.5T) all changed asset prices independently of the FOMC press release. The vol tail wags the dog on the balance sheet too: the marginal buyer of duration matters.

This is a working tool, not civics. By the end of the lesson you will know what each Fed lever does, where to read the signal, and how to size the resulting move into your own four-tranche portfolio.

---

2. What You Need to Know

2.1 The Dual Mandate — Two Numbers, One Knob

Congress wrote two objectives into the 1977 Federal Reserve Reform Act: "maximum employment" and "stable prices." That is the dual mandate. It is two targets and one main lever (the Fed funds rate), which means when the targets disagree the Fed has to choose. In 2022 it chose prices over employment — Powell's "some pain" speech at Jackson Hole — and tightened into a labour market that was still adding 400k jobs a month. In 2008 it chose employment over prices and slashed to zero while headline CPI was still 5%.

"Stable prices" is operationalised as a 2% core PCE target, in place since the 2012 Bernanke statement and reaffirmed under the 2020 Flexible Average Inflation Targeting (FAIT) framework. "Maximum employment" has no number — the Fed estimates the non-accelerating inflation rate of unemployment (NAIRU, currently around 4.0%) and tries not to let actual unemployment fall persistently below it without inflation responding.

The investing point: read the dual mandate as a regime indicator. When the Fed is fighting inflation, expect a flat-to-inverted curve, elevated real rates, and pressure on long-duration assets (growth equity, REITs, long bonds). When the Fed is fighting unemployment, expect a steep curve, low real rates, and bid-up duration. Side 06 covered the inflation half; this lesson covers the lever.

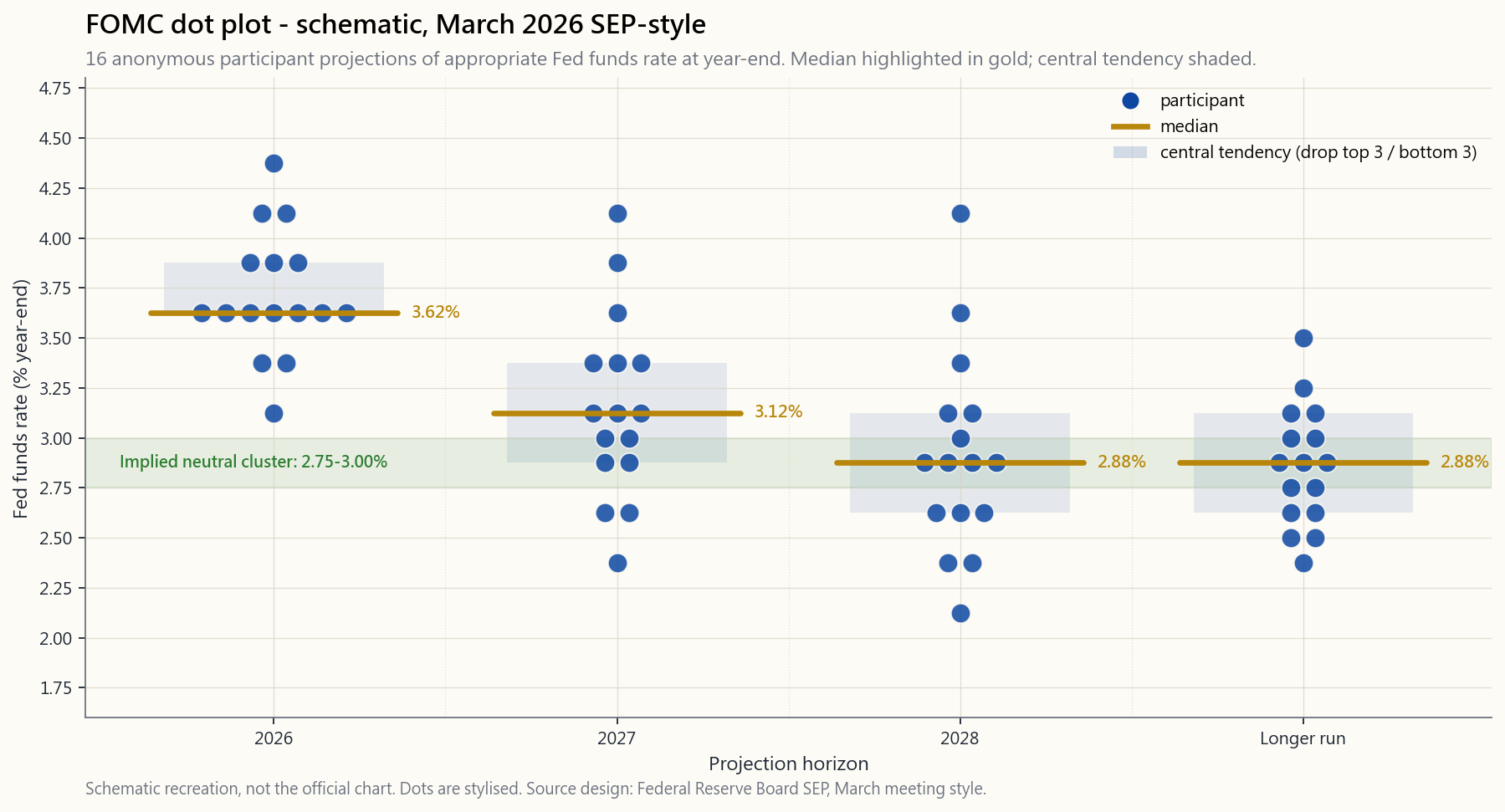

2.2 The FOMC, the SEP, and the Dot Plot

The Federal Open Market Committee is twelve voting members: the seven Board governors, the New York Fed president (permanent), and four of the eleven other regional presidents on a one-year rotation. They meet eight times a year. Four of those meetings — March, June, September, December — are accompanied by the Summary of Economic Projections: each participant submits their forecast for GDP growth, unemployment, PCE inflation, core PCE, and most importantly the appropriate Fed funds rate at year-end for the next three years and in the "longer run."

The plot of those rate forecasts is the dot plot. Sixteen or seventeen dots, one per participant (voters and non-voters), unlabelled, arranged vertically in 25-bp increments. The market reads three things out of it: the median, the central tendency (drop top three and bottom three), and the dispersion (a tight cluster signals consensus, a wide spread signals committee disagreement and therefore optionality).

Two reading rules. First, the median moves markets, the tails don't. The single dot at 5.5% in the 2027 column is some hawk who would not budge in committee. The market discounts it. Second, **the longer-run dot is the implicit estimate of "neutral"**. In April 2026 the longer-run cluster sits at 2.75-3.00%, up from the 2.5% standing estimate that prevailed for most of the 2010s. That single 25-bp shift is the most important number in the whole document — it is the regime change this lesson has been tracking.

2.3 The Tools — FFR Target, IOER, ON-RRP, and the Balance Sheet

Pre-2008 the Fed had one tool: it traded Treasury repo to keep the overnight Fed funds rate near a single target value. After 2008 the toolkit got more complicated.

The Fed funds target range. Since December 2008 the FOMC has announced a 25-bp range, not a point (e.g. "3.50-3.75%"). The effective rate floats inside that range, governed by two administered rates that form the floor and ceiling.

Interest on Reserve Balances (IORB / IOER). This is the rate the Fed pays banks on reserves they hold at the Fed. Banks will not lend overnight below this rate, so it acts as the soft floor of Fed funds. In April 2026 IORB sits at 3.65%.

Overnight Reverse Repo (ON-RRP). This is the rate the Fed pays to a broader set of counterparties — money-market funds, GSEs — for parking cash overnight. It sits 5 bp below IORB and acts as the hard floor: no one with access lends below it. The ON-RRP facility ballooned from zero to $2.4 trillion at the 2022 peak as money-market cash had nowhere else to go. As of April 2026 it is back near $200 billion — a major sign of liquidity normalisation.

The discount window is the lender-of-last-resort rate, set 25 bp above the upper bound of the target range. Used by stigmatised banks in crisis.

The balance sheet (QE / QT). When conventional rates hit zero in 2008 and again in 2020, the Fed bought Treasuries and agency MBS outright to push down long-end yields and force investors out of bonds into riskier assets. At the August 2022 peak the balance sheet was $8.97T (35% of GDP). Since June 2022 the Fed has been letting maturing securities roll off at a capped pace — $95B/month, recently slowed to $45B — Treasuries plus MBS combined. By April 2026 the balance sheet is about $6.5T (24% of GDP). Each $1T of runoff is roughly equivalent to 25 bp of conventional tightening per Fed staff estimates. That is why the dot plot and the balance-sheet plan have to be read together.

2.4 The Transmission Mechanism — How a 25-bp Cut Reaches Your Portfolio

The Fed sets one overnight rate. Asset prices live on the long end of the curve. The path from one to the other is the **transmission mechanism**. Five steps, each empirically measurable.

FFR → SOFR (overnight). The Secured Overnight Financing Rate is

collateralised with Treasuries; it sits 5-10 bp below the upper bound of the FFR range, with near-perfect pass-through. When the Fed moves, SOFR moves the next morning.

SOFR → 2-year Treasury. The 2y is essentially "the average

short-rate the market expects over the next eight quarters." Empirical pass-through is about 0.85: a 100 bp move in expected FFR over the next two years moves the 2y by roughly 85 bp. The remaining 15 bp is uncertainty discount.

2y → 10y Treasury (slope). The 10y minus 2y spread averages

about +110 bp in expansions, near 0 in late-cycle, and inverts before recession. In April 2026 the 10y-2y is back to +40 bp after eighteen months of inversion. Long-rate pass-through from short rates is only about 0.5: term premium and growth expectations soak up the rest.

10y → 30-year mortgage. The primary-secondary spread averages

about 175 bp; in stress it widens to 250-300 bp (March 2020, October 2022). At a 4.20% 10y in April 2026 the average 30-year mortgage is 6.0%, which is what borrowers actually face.

10y → equity discount rate → P/E. The Gordon model says

$P/E = 1/(k - g)$ where $k$ is the equity discount rate (real 10y + equity risk premium) and $g$ is the long-run real growth rate of earnings. Hold ERP at 5%, real growth at 2%, real 10y at 1.5%; you get a fair P/E around 22. Move the 10y by 100 bp and the P/E moves by about 4 multiple points.

Week 18 (week18_rate_cascade.md) plots steps 1-4 as a single chart; week 31 (week31_yield_curves.md) covers the 2y/10y slope dynamics. This lesson is the layer above: how the Fed moves step 1.

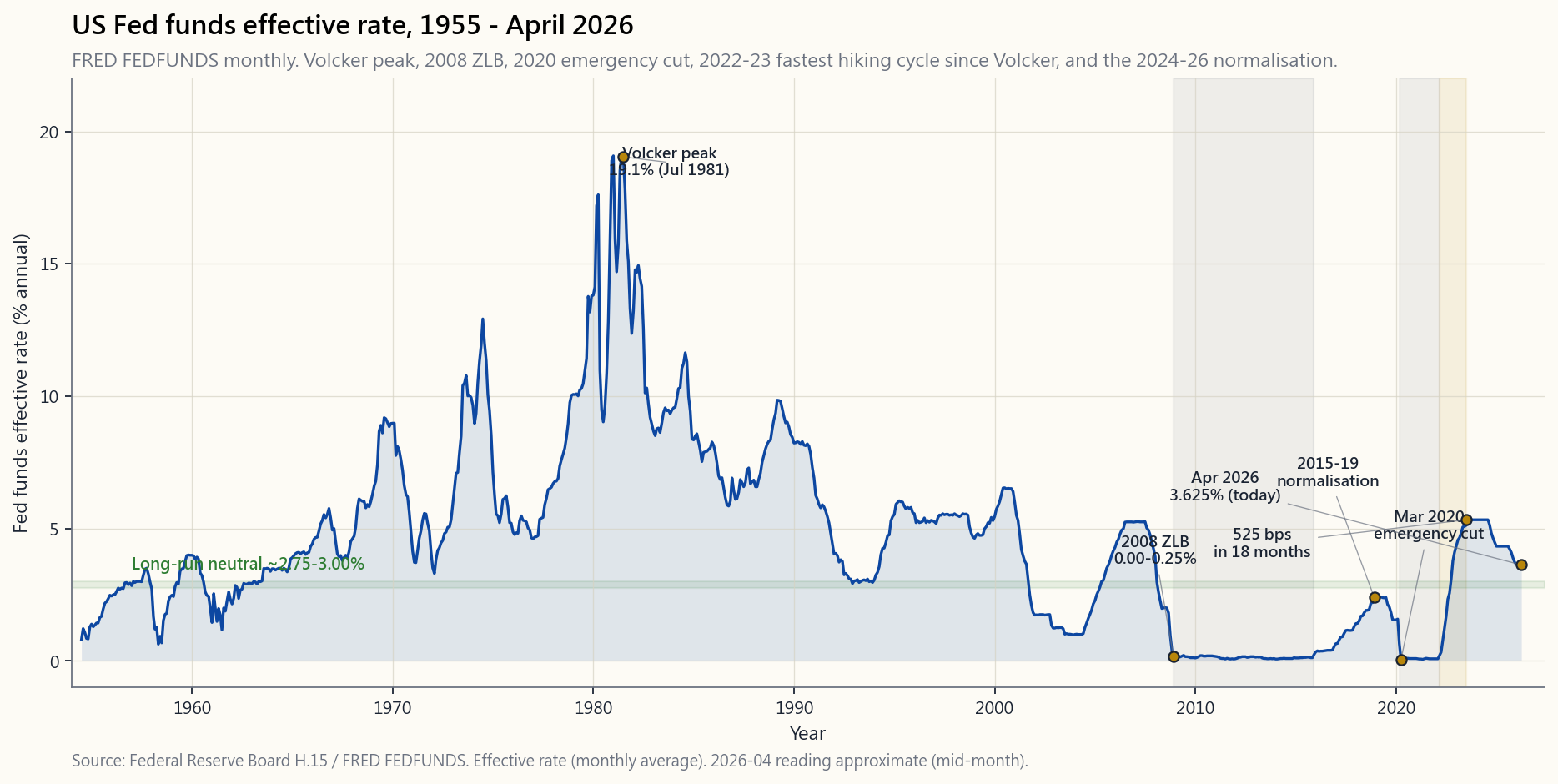

2.5 Recent History — Three Regimes in Twenty-Five Years

The post-2000 period is three distinct regimes, and each one trained a different cohort of investors to expect a different Fed.

2000-2007 — the conventional regime. Greenspan/Bernanke. FFR swings from 6.5% to 1.0% to 5.25%. Balance sheet flat at $870B. This is the world the textbooks describe and the world that ended in 2008.

2008-2021 — the zero lower bound. Lehman, December 2008 cut to 0-0.25%. Held there until December 2015. First normalisation peaked at 2.25-2.50% in December 2018. The 2019 mid-cycle adjustment cut three times. Then COVID, March 2020: emergency cut to 0-0.25% in two weeks, $2.3T of QE in three months. Held at zero through March 2022. Thirteen of those fourteen years had a Fed funds rate below 1%. A trader who started in 2010 had no first-hand experience of a positive real funds rate until 2023.

2022-2026 — the rapid hiking and normalisation. March 2022 lift-off. 525 bps in eighteen months: the fastest pace since Volcker. Terminal range 5.25-5.50% reached July 2023, held for fifteen months, first cut September 2024. By April 2026 the FFR sits at 3.50-3.75%, with the dot plot pointing to ~3.0% by end-2027 and a longer-run "neutral" near 2.75-3.00%. The cycle is over; the new equilibrium is settling.

The investing read-through: **stop assuming the Fed will always rescue duration**. The 2008-2021 muscle memory was that every 10% drawdown brought a cut. The 2022-23 cycle proved that a Fed fighting inflation will tolerate a 25% equity drawdown and a 30% bond drawdown without flinching. Build your barbell on the assumption that the Fed put strikes 20% lower than it used to, not 5%.

---

3. Common Misconceptions

"The Fed prints money." It buys financial assets with reserves

it creates. Reserves sit in commercial-bank accounts at the Fed; they only become circulating money if banks lend them out. From 2008 to 2014 reserves grew $3T while M2 grew much less and CPI averaged 1.5%. The 2020-22 episode was different because fiscal transfers (cheques) landed directly in household accounts, which is circulating money — that is what produced the inflation, not the QE leg.

"The Fed sets the mortgage rate." It sets one overnight rate. The

30-year mortgage is set by the bond market, the prepayment-option premium, and the primary-secondary spread. The Fed influences it by ~50 bp per 100 bp of FFR move, not one-for-one.

"The dot plot is a promise." It is a snapshot of *where each

participant thinks rates appropriately would be if their forecast is right*. Powell repeatedly says "the dots are not a committee commitment." When the data changes, the dots change. Trading the dot plot as a forward curve has lost a lot of money.

"Independence means non-political." Independence means the Fed

does not need White House approval for policy moves. It does not mean the Fed ignores politics — Chairs are reappointed by the President, the Board is confirmed by the Senate, and the Humphrey-Hawkins testimonies twice a year are political theatre. Read the politics into the lag between data and action.

"QE creates inflation." Reserves are not money. The 2010-2019

period had $4T of QE and 1.5% average CPI. The 2020-22 inflation came from the fiscal transfer plus supply-chain breaks; QE was a contributor, not the cause. Do not confuse correlation with causation in regime data.

"The Fed targets the 10-year." The Bank of Japan targets a long

yield (yield-curve control). The Fed has explicitly refused to, despite repeated calls. It targets one overnight rate and lets the market set everything past three months.

"A flat curve means a recession is coming." An inverted curve

has a strong record (week 10). A flat curve means the market is uncertain. They are not the same thing.

"The Fed wants the stock market down." The Fed targets prices and

employment. Stock-price moves matter only insofar as they affect financial conditions, which feed back into prices and employment. The much-quoted "Fed put" was largely an artefact of the 2010s regime; in 2022 the Fed welcomed the equity sell-off because it tightened conditions for free.

"Forward guidance is talk, not policy." The 2011-2014

"calendar guidance" and the 2020 "outcome-based guidance" both moved the 2y by 30-40 bp on words alone — without a single open-market trade. Words are policy when they shift expectations.

"I can't trade the FOMC." You cannot reliably predict the

decision, but you can reliably position for the regime. Hold a barbell of cheap-and-safe plus bounded lottery tickets. The vol tail wags the dog around the announcement — sell short-dated vol into the meeting, not after.

---

4. Q&A Section

Q: How much does a 25-bp Fed cut move the S&P 500? A: On the day of the announcement, an expected 25-bp cut moves the index by roughly zero — it is already in the price. An unexpected 25-bp cut moves the index by about +1%. An unexpected hold when the market priced a cut (a "hawkish hold") is worth about -1.5%. The size is dwarfed by the dot plot and the press conference.

Q: What's the difference between the Fed funds rate and SOFR? A: Fed funds is unsecured overnight bank-to-bank lending; SOFR is secured (Treasury collateral) overnight repo. Post-2018 SOFR replaced LIBOR as the reference rate for $200T of derivatives. SOFR sits 5-10 bp below the upper bound of the Fed funds target range and tracks it near-perfectly.

**Q: Why does the dot plot have sixteen or seventeen dots when only twelve members vote?** A: All seven Board governors plus all twelve regional presidents (nineteen total when fully staffed, currently sixteen-seventeen due to vacancies) submit projections, regardless of whether they vote that year. The non-voting regional presidents still influence the consensus at the meeting.

Q: What is "neutral" and why does it matter? A: Neutral (also called r-star or natural rate) is the real Fed funds rate that is neither stimulating nor restraining the economy. The Fed's estimate has fallen from ~3% real (5% nominal at 2% inflation) in the 1990s to ~0.5% real (2.5% nominal) in the 2010s, and is now drifting back up to ~1% real (3.0% nominal). Where neutral sits is the single most important number for long-term equity valuations: P/E lives off the inverse of (real rate + ERP).

Q: Should I follow the Fed Chair's press conference? A: Yes — and read the prepared statement word-for-word against the prior one. Track which adjectives change. "Patient" disappearing in 2018 was the cue for the 2019 pivot. "Some pain" appearing in 2022 was the cue for the hiking acceleration. The press conference Q&A contradicts the statement maybe 10% of the time and you only catch it by reading both.

Q: How do I trade a Fed week without getting whipsawed? A: Don't increase position size in the seventy-two hours around an FOMC meeting. The vol tail wags the dog. Implied vol on the day is typically 30-40% above realised; selling that vol in size is one of the cleaner short-dated trades. If you need direction, wait for the press conference to end and the curve to settle.

Q: Is the Fed independent? A: Operationally yes — the FOMC sets policy without White House sign- off. Politically partly — Board members are confirmed by Congress, Chairs are reappointed by the President, and the Fed's authorising statute can be amended. The post-1951 Treasury-Fed Accord cemented the operational independence; that has held through eight presidents and two of them (Nixon, Trump) actively pressuring the Fed in public.

Q: What is QT and why doesn't anyone talk about it? A: Quantitative tightening — the runoff of the Fed's balance sheet by not reinvesting maturing securities. Since June 2022 the Fed has shed about $2.5T from a $9T peak. Each $1T is roughly worth 25 bp of tightening, so the program is the equivalent of an extra 60 bp on top of the conventional hike cycle. It is under-discussed because the FOMC press releases describe it in opaque "$X billion per month" footnotes rather than headline numbers.

Q: When the Fed cuts, do all assets go up? A: Long-duration assets (long bonds, REITs, growth equity, gold) get the strongest immediate boost. Short-duration assets (value stocks, short bonds) get less. If the cut signals a recession (employment mandate winning), credit spreads widen and high-yield bonds and cyclicals can sell off even as Treasuries rally. Read the reason for the cut, not just the cut.

Q: How does the dot plot interact with the SEP inflation forecast? A: They are two halves of one document. If the median PCE forecast for 2026 is 2.4% and the median FFR for 2026 is 3.5%, the implied real funds rate is +1.1% — restrictive. If those numbers move to 2.0% and 3.0% respectively, the implied real rate is +1.0% — about the same restrictive stance. Always read the dot plot net of the inflation forecast, never in nominal terms.

Q: Should I buy long bonds when the Fed starts cutting? A: Empirically, the 10-year bottoms about three months before the first cut and is choppy through the cutting cycle. The actual textbook "buy bonds before the Fed cuts" trade has worked in 4 of the last 6 cycles (1989, 2001, 2008, 2019) and lost in 2 (1995, 2024 partial). The four-tranche framework says hold a permanent strategic duration sleeve; do not try to time the cycle.

Q: What does the Fed know that I don't? A: Nothing about the future. The Fed has the same data you do, plus a better real-time read on bank stress and labour-market detail (JOLTS, weekly payrolls). It does not have a crystal ball. The 2007 minutes have the staff calling for soft-landing eleven weeks before Bear Stearns collapsed. Trade the response function, not the prediction.

The interactive Fed Lab lets you plug in your own assumptions for end-2026 and end-2027 Fed funds, plus the pace of balance-sheet runoff, and watch the implied 2y / 10y / 30y mortgage / S&P 500 P/E fall out of the same pass-through coefficients the desks use. Match your assumptions against the median dot. If your numbers diverge from the committee's by more than 50 bp, you are taking a forecasting bet — size it the way any forecasting bet should be sized: rare, sized, and bounded.
