Side Lesson 24: Portfolio Monitoring Tools

---

1. Why This Is Important

The model from Week 52 ends at "build the portfolio." Real life starts there. A portfolio you cannot see clearly is a portfolio you cannot run. The job after the IPS is signed is to inspect — at most monthly, never daily — whether the thing you wrote down is the thing you actually own. That is what monitoring tools do.

Drift kills good plans. A 35/25/15/5/10/5/5 model L4 portfolio rebuilt

from Week 52 will drift on its own. After one strong equity year the growth tranche bulges to 42% and the cash sleeve thins to 3%. Without a tool that measures drift against target — sleeve by sleeve — you cannot tell whether you have crossed the +/-5pp band that triggers a trim.

You cannot see overlap by squinting. Holding VTI, VOO, SPY, QQQ, and

SCHD looks like five funds. The X-Ray says it is mostly one fund: AAPL, MSFT, NVDA, AMZN, META, GOOG appear in all five at high weight. Sector double-counting is the most common silent failure of retail portfolios, and it is invisible without a holdings-level pass-through.

Fees are a flat-rate compounding tax. A 0.50% expense ratio on a

$500k portfolio is $2,500 a year, every year, automatically — silently debited and never invoiced. The tools that aggregate every account and compute expense-weighted average ER are the ones that turn the abstract "fees matter" into a specific dollar number you can decide whether to pay.

Behavioural guardrails come from automation. Paradoxically, having

better monitoring lets you check less. When alerts fire only on band breaches and the dashboard lives on a fixed monthly cadence, the urge to log into your brokerage every morning fades. The tool watches; you live your life. That is exactly the discipline of staying solvent long enough for the strategy to compound.

---

2. What You Need to Know

2.1 Portfolio Visualizer — the free institutional terminal

portfoliovisualizer.com is the single most useful free tool in the retail kit. Five modules deserve your attention:

• Backtest Portfolio. Enter weights and ticker list, pick a start date,

and the tool returns annualised return, vol, max drawdown, Sharpe, Sortino, Calmar, and a year-by-year table. It runs against monthly data back to 1985 for most ETFs, with mutual fund proxies extending some series further. You can compare three portfolios side by side — exactly what Week 04 / Week 15 / Week 52 expect you to do before changing weights.

• Asset Class Backtest. Same engine, but with reconstructed broad asset

classes (US large, US small value, intl developed, EM, REITs, gold, long-bond, T-bill) reaching back to 1972. This is how you stress-test a 60/40 or All-Weather sleeve against the 1970s inflation regime that doesn't exist in the ETF window.

• Factor Regression. Runs Fama-French 3, Carhart 4, and FF 5 + momentum

on any ticker or portfolio. Output: alpha (with t-stat), beta exposures to market / size / value / momentum / quality / low-vol. This is how you prove your factor tilt is doing what you paid the higher ER for.

• Monte Carlo. Forward simulation with capital-market assumptions you can

override. Useful for SWR stress and sequence-of-returns tail testing.

• Asset Correlations. Rolling and full-period matrices, with

user-controllable window. Quick eyeball of the correlation collapse problem from Week 19.

The free tier covers all of the above. The paid tier ($30/month) adds optimization and historical Sharpe rolling charts; for a retail investor the free tier is enough indefinitely.

2.2 Morningstar Instant X-Ray — the overlap detector

X-Ray is the free tool buried inside a Morningstar account. Paste your ticker list and weights and it returns:

• Asset-class breakdown — how much US stock, intl stock, bond, cash, other

you actually own once funds are flattened to holdings.

• Sector allocation — eleven GICS sectors, with the S&P 500 reference

alongside.

• Region allocation — North America / Europe / Japan / Asia ex-Japan /

Latin America / Middle East / Africa.

• Top 10 holdings — across the entire portfolio after fund pass-through.

This is where "I own VTI and SCHD" turns into "27% of my equity is in seven US mega-caps."

• Stock overlap — a number between 0% and 100% that quantifies how much

of two funds' weighted holdings are the same names.

If you take only one thing from this lesson it is the overlap number. A retail portfolio of VTI + VOO + SPY + IVV reads as four funds and is in fact one fund with a 99.5% overlap. The image script side24_overlap_detection.py walks through a 5-fund example where the pairwise overlap heatmap shows ~60% top-ten overlap on the diagonal cluster.

2.3 Empower (formerly Personal Capital) — the aggregator

Empower's free tools include an account aggregator that pulls from most US brokerages, banks, and 401(k) providers via Plaid. Once linked it runs three analytics that matter:

• Retirement Planner. Monte Carlo forward projection from your actual

current balances and contribution rates.

• Investment Checkup. Asset-class breakdown across all accounts at once

— the cross-account view that no single brokerage gives you. Compares to a target allocation and flags the gap.

• Fee Analyzer. The killer feature. Aggregates every fund's expense ratio

weighted by holding size and reports the dollar fee impact over your time horizon. The version that surfaces the difference between a 0.65% advisor fee and a 0.05% DIY portfolio over thirty years has converted more retail investors away from full-service advisors than any blog post ever has.

The catch: Empower's business model is a wealth-management lead funnel. Expect calls. Decline politely; the tools remain free.

2.4 Brokerage built-ins — Schwab, Fidelity, Vanguard

Every major US brokerage has shipped a portfolio-analytics dashboard in the 2020-2025 wave:

• Schwab Portfolio Checkup — pulls into the X-Ray engine via partnership

and surfaces sector / asset class / overlap views inside your Schwab login.

• Fidelity Portfolio Analysis — strong on tax-lot view and unrealised

gain/loss reporting. Their "Compare to Benchmark" panel produces a clean rolling-return comparison vs. any index.

• Vanguard Portfolio Watch — basic but free; useful if your portfolio is

Vanguard-only.

Use the brokerage tool when you want to look at the accounts at that brokerage. Use Empower or X-Ray when you need the full cross-account view.

2.5 The DIY spreadsheet — the tool you actually run

Despite the polished web tools, most disciplined retail investors I know run a Google Sheet or Excel workbook as their primary monthly dashboard. Three reasons: it owns no opinions about your asset categories, it never changes its UX out from under you, and it works offline.

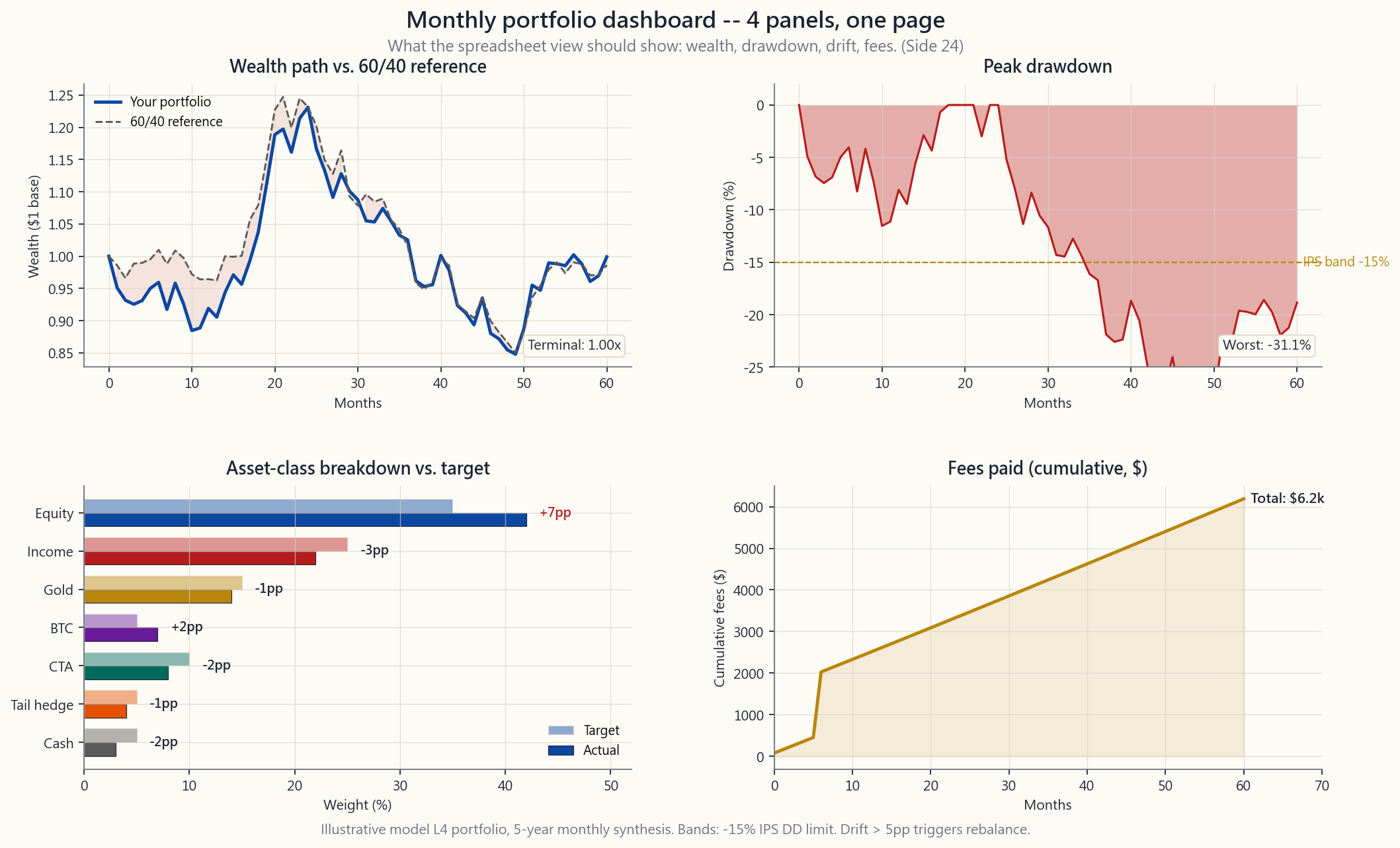

A minimum-viable monthly sheet has six columns: ticker, target weight, target dollars, current dollars, drift in pp, action (trim / add / hold). Underneath that, three computed cells: total portfolio value, expense-weighted ER, and trailing-twelve-month return vs. a 60/40 reference. That's it. The image script side24_dashboard_template.py shows what this looks like rendered as four panels: wealth path, drawdown, asset-class breakdown, and rolling fee spend.

GOOGLEFINANCE("VTI", "price") and friends pull live prices into Google

Sheets at 20-minute delay, free, forever. There is nothing the paid tools do in their dashboard panes that a column of =GOOGLEFINANCE() calls cannot replicate.

2.6 The monthly review checklist

The tool is useless without the cadence. Once a month, on a fixed day:

Total return YTD and trailing 12m. Vs. the 60/40 reference. One

sentence written in a notes column.

Realised volatility and trailing peak drawdown. From the spreadsheet

or PV. Compare against the IPS-stated maximum drawdown.

Sleeve drift. For each of the seven Week-52 sleeves: is it within +/-5

percentage points of target? Any breach triggers a trim/add of just that sleeve, ideally directed via new contributions before any sales.

Factor exposures. Quarterly is enough here — run the PV factor

regression on your tilt sleeves (MTUM, AVUV, QUAL, USMV) and confirm beta to the named factor is still > 0.5 and t-stat > 2. Decay below that threshold for two consecutive quarters triggers the half-weight stop-rule.

Fees paid year-to-date. Expense-weighted ER * portfolio value, prorated

for the year. Watch for advisor-managed accounts and fund-of-fund wrappers that slip in via 401(k) target-date defaults.

Rebalancing band breaches. Anything over the 5pp band gets actioned

that day. Anything under stays untouched until next month.

The reason monthly cadence is right and daily is wrong is not laziness; it is structural. A modern portfolio — and the four-tranche stack from Week 52 is exactly this — is a barbell in shape: high-conviction safety on one end (cash, short Treasuries, gold, deep-ITM long-dated calls on names you actually want to own), asymmetric speculation on the other (the opportunistic sleeve, the tail-hedge sleeve, the option positions). The barbell only works if you let the safety end be safe. Daily checking re-introduces the disposition effect from Side 15 — the urge to trim the green and add to the red — into a sleeve that exists to not be touched. Worse, it turns the tail-hedge sleeve into a pricing-anxiety machine: a small option position whose purpose is to expire worthless 95% of the time becomes a quarter-by-quarter heartbreak the moment you put a daily P&L line under it. Monthly cadence is the policy that keeps the shape of the portfolio doing its job. The dashboard exists to enforce the gap between review days, not to fill them.

The interactive side24_dashboard.html lets you build a 5-ETF portfolio from a 12-fund dropdown and see asset-class breakdown, expense-weighted average, and pairwise top-10 overlap in real time — a working miniature of the retail toolkit described above.

---

3. Common Misconceptions

"More tools means more insight." No. Five overlapping dashboards is

five different framings of the same numbers, and the dashboard you check at 9am gets read; the four others rot. Pick one primary (spreadsheet or Empower), one analytics deep-dive (Portfolio Visualizer), and one overlap checker (Morningstar X-Ray). Stop there.

"My brokerage already shows me everything." Only for accounts at that

brokerage. The cross-account view — including the spouse's IRA, the prior employer's 401(k), and the HSA — is exactly what no single brokerage gives you. Aggregator or spreadsheet is the only way.

"Daily checking keeps me informed." It keeps you anxious. Studies of

active retail traders find a near-monotonic relationship between login frequency and underperformance (Barber & Odean 2000). Set a fixed monthly day, do the checklist, close the tab.

"X-Ray is for fund-of-funds, my ETF portfolio is clean." Wrong. SCHD,

VYM, DGRO, and NOBL look like four different income strategies. Run them through X-Ray: 50%+ holdings overlap because they all filter the same S&P 500 universe for dividend characteristics.

"The expense ratio is the only fee I pay." No. The full menu is ER +

12b-1 + transaction costs inside the fund + bid-ask + advisory fee + account fees. Empower's fee analyzer surfaces the first; only Form ADV reading and tax-return inspection surfaces the rest.

"Monte Carlo says 87% success — I'm safe." Monte Carlo assumes the

future return distribution looks like the historical one. The macro regime changes every 30-40 years, so it won't. Treat the simulation as a sensitivity tool, not a probability forecast.

"Free tools are limited; the paid versions show the truth." The paid

tier of Portfolio Visualizer adds optimization (which over-fits) and a few convenience features. The truth is in the free tier. Pay only when you've exhausted what it gives you.

"Rebalancing bands are arbitrary; I'll just rebalance annually."

Calendar-only rebalancing is fine in calm markets. In 2008 or 2020 a strict-calendar portfolio missed the 25-30% mid-year band breach where the real rebalancing premium lives. Hybrid (annual + 5pp band) captures both.

---

4. Q&A Section

Q1. How often should I actually log in? A. Once a month for the dashboard checklist. Once a quarter for the deeper factor regression and stop-rule check. Annually for the full IPS rewrite. That's it. More than this is cost without benefit.

Q2. Is Portfolio Visualizer's data accurate? A. For monthly total returns of US-listed ETFs back to inception, yes — it sources from CRSP and the funds' own filings. The asset-class reconstructions back to 1972 use academic indices (Fama-French, Damodaran-style splices) that are accurate in shape but not investable in real life. Use them for shape, not forecast.

Q3. Empower or a spreadsheet? A. Both. Empower for the cross-account aggregation and fee analyzer. Spreadsheet for the monthly drift check and sleeve action plan. They serve different purposes; the spreadsheet is your operating tool, Empower is your audit tool.

Q4. What overlap percentage is too much? A. As a working rule, any pair of funds with > 50% top-10 holdings overlap is double-counting. Either drop one or accept that you have one larger position in the shared names. The five-S&P-500-ETF portfolio is the reductio: 99.5% overlap, paying 4x the ER for the same exposure.

Q5. Should I pay for Morningstar Premium? A. No, for monitoring purposes. The X-Ray tool is free with a basic account. Premium adds analyst star ratings (which Morningstar's own studies show have little forward predictive power) and screener access. The free X-Ray pane is the only Morningstar product that earns a regular spot in the workflow.

Q6. Does the brokerage's "risk score" mean anything? A. No. Schwab, Fidelity, and Empower each have a proprietary "risk score" that combines vol, beta, and concentration into a single 0-100 number. The weights are opaque, the methodology is unverified, and the score is mainly a sales tool to flag accounts as candidates for managed services. Ignore.

Q7. How do I track tax-loss harvesting opportunities? A. Brokerage tax-lot view + spreadsheet. Sort lots by unrealised loss descending; any lot below cost by more than $500 and held outside the 30-day wash-sale window is a candidate. See Side Lesson 04 for the full TLH mechanics. No mainstream monitoring tool surfaces TLH well — the brokerage tax-lot screen is your primary source.

Q8. Can I automate alerts? A. Yes. Most brokerages let you set price alerts; combine with a Google Sheet that flags drift > 5pp in conditional formatting and emails you on trigger via a 10-line Apps Script. That's the entire automation budget. Going beyond it (real-time triggers, mobile push) is exactly the dopamine pump that undermines the discipline of staying solvent.

Q9. What about crypto holdings — none of these tools handle BTC? A. Empower aggregates Coinbase. Most others ignore crypto. The simplest fix: a manual cell in your spreadsheet for the BTC sleeve, refreshed monthly. The 5% sizing from Side Lesson 09 doesn't need second-by-second precision.

Q10. The dashboard says I'm 8pp overweight equity. Do I sell or wait? A. Sell — partially. The 5pp band trigger means action now, not "wait for year-end." Direct new contributions to the under-target sleeves first; if that doesn't close the gap within one month, sell down enough of the overweight sleeve to land back inside the band. Tax-lot pick the highest basis lots in taxable accounts; in IRAs there is no tax cost so trim freely.
